3.0L Diesel

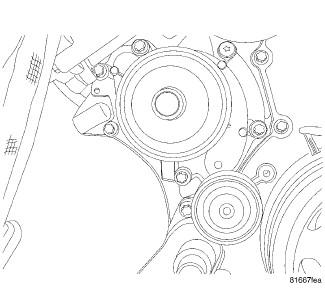

Fig 1: 3.0L WATER PUMP
GC0118278Courtesy of CHRYSLER LLC
  1. Clean all sealing surfaces.
  2. Position and install water pump. Tighten M6 bolts to 14 N.m (124 lbs. in.) and M8 bolts to 20 N.m (177 lbs. in.).
  3. Install the EGR valve. Refer to Emissions Control/Exhaust Gas Recirculation/VALVE, Exhaust Gas Recirculation (EGR) - Installation .
  4. Install the accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
  5. Install the upper radiator hose.
  6. Install the engine cover.
  7. Connect the negative battery cable.
  8. Evacuate air and refill cooling system. See Cooling/Engine/PUMP, Water - Standard Procedure
  9. Check cooling system for leaks. See Cooling - Diagnosis and Testing
