Left Front

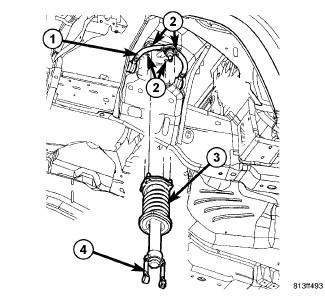

Fig 1: Shock Assembly

Courtesy of CHRYSLER LLC

1 - UPPER CONTROL ARM

2 - MOUNTING HOLES

3 - SHOCK ASSEMBLY

4 - CLEVIS BRACKET

Install the clevis bracket (4) to the shock (3) and tighten to 122 N.m (90 ft. lbs.).
Install the shock assembly (3) to the vehicle.

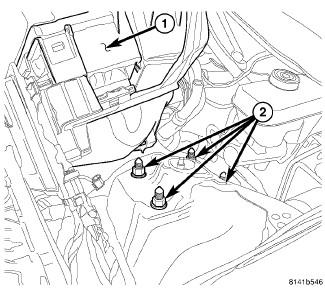

Fig 2: Upper Shock Nuts
Courtesy of CHRYSLER LLC

1 - PDC

2 - UPPER MOUNTING NUTS
Install the four upper shock nuts (2), Tighten to 95 N.m (70 ft. lbs.).

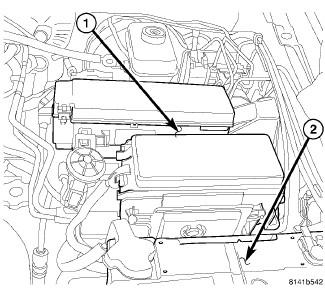

Fig 3: PDC Bracket Nuts
Courtesy of CHRYSLER LLC

1 - POWER DISTRIBUTION CENTER

2 - BATTERY

Install the 3 PDC (1) bracket nuts.

Fig 4: Stabilizer Link & Shock Clevis Bracket

Courtesy of CHRYSLER LLC

1 - KNUCKLE

2 - CLEVIS BRACKET AND BUSHING

3 - STABILIZER LINK

Raise the vehicle up.
Install the lower stabilizer bolt (3) at the lower control arm and tighten to 115 N.m (85 ft. lbs.).
Install the lower clevis bolt (2) at the lower control arm and tighten to 169 N.m (125 ft. lbs.).
Install the upper ball joint into the knuckle (1) and tighten the nut to 75 N.m (55 ft. lbs.).
Install the disc brake rotor.
Install the caliper adaptor mounting bolts to 176 N.m (130 ft. lbs.).
Install the tire and wheel assembly.
Lower the vehicle.
