MANIFOLD, Intake: Description: Description

Fig 1: 3.7L Intake Torque Sequence

Courtesy of CHRYSLER LLC

The intake manifold is made of a composite material and features long runners which maximizes low end torque.

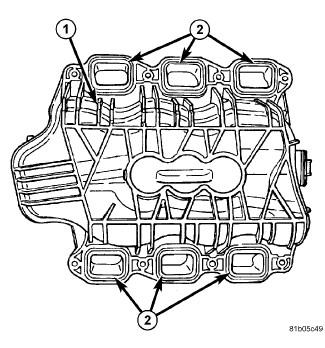

Fig 2: Intake Manifold Seals

Courtesy of CHRYSLER LLC

The intake manifold (1) uses single plane sealing which consist of six individual press in place port gaskets (2) to prevent leaks. The throttle body attaches directly to the intake manifold.
