4.7L/5.7L Vehicles

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

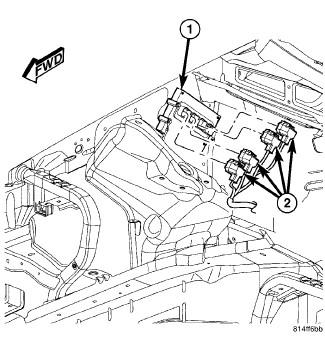

Fig 1: Powertrain Control Module
GC0118384Courtesy of CHRYSLER LLC

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM) (1) . The PCM is located on the right inner fender.
