MODULE, Adjustable Pedal: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The Adjustable Pedals Module mounting tabs can be damaged during module installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

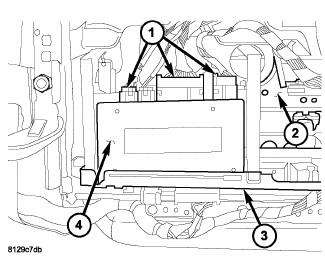

Fig 1: Removing/Installing Memory Seat Module
GC0118366Courtesy of CHRYSLER LLC
  1. Place the module (4) into position making sure the mounting tabs are properly aligned with the front bracket.
  2. Push down on the rear of the module (4) snapping the retaining clips into place in the side brackets.
  3. Connect the adjustable pedals module rear harness connectors (1).
  4. Connect the adjustable pedals module front harness connectors.
  5. Install the driver seat cushion/cover (2). Refer to Body/Seats/COVER, Seat Cushion - Installation .
  6. Connect the battery negative cable.
  7. Verify system and vehicle operation.
