A/C Compressor
WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

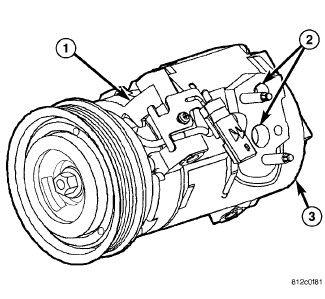

The A/C system on models equipped with the 3.0L, 3.7L, 4.7L and 6.1L engine, use a Denso 10S17 A/C Compressor (1). Models equipped with the 5.7L engine, use a Denso 10SRE!8 A/C Compressor. Both A/C compressors are a ten cylinder, double-acting swash plate-type compressor with the suction and discharge ports (2) located on the cylinder head (3) at the rear of the compressor.
A label identifying the use of R-134a refrigerant is located on each A/C compressor.
