No Response From FCM (Front Control Module): Notes
WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

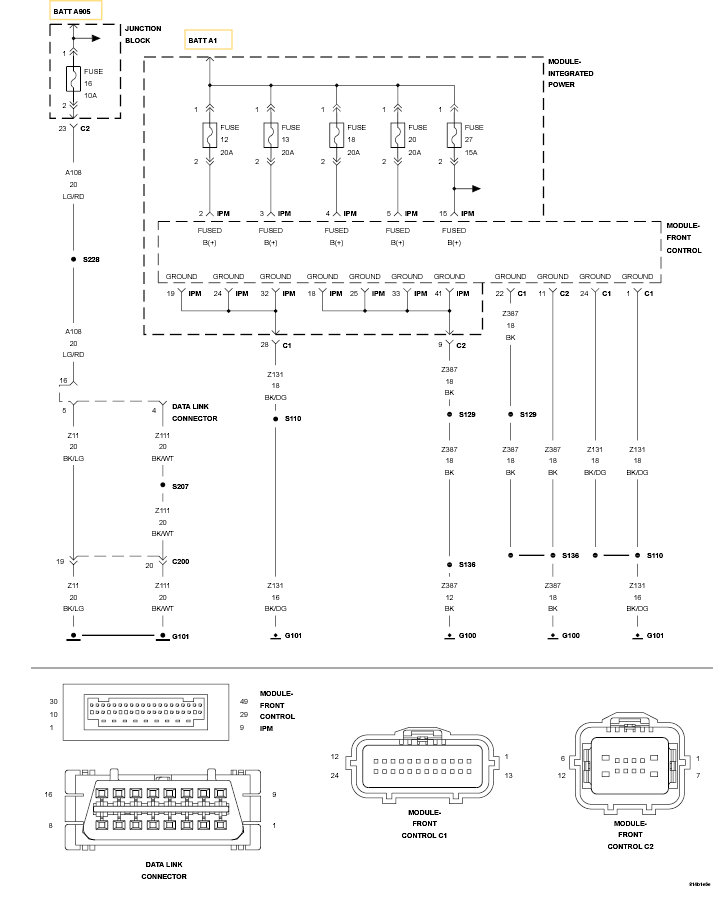

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A108) FUSED B(+) CIRCUIT OPEN AT DLC |
| (Z11) (Z111) GROUND CIRCUIT OPEN AT DLC |
| GROUND CIRCUITS OPEN AT FCM |
| FUSED B(+) CIRCUITS OPEN AT FCM |
| FRONT CONTROL MODULE |
