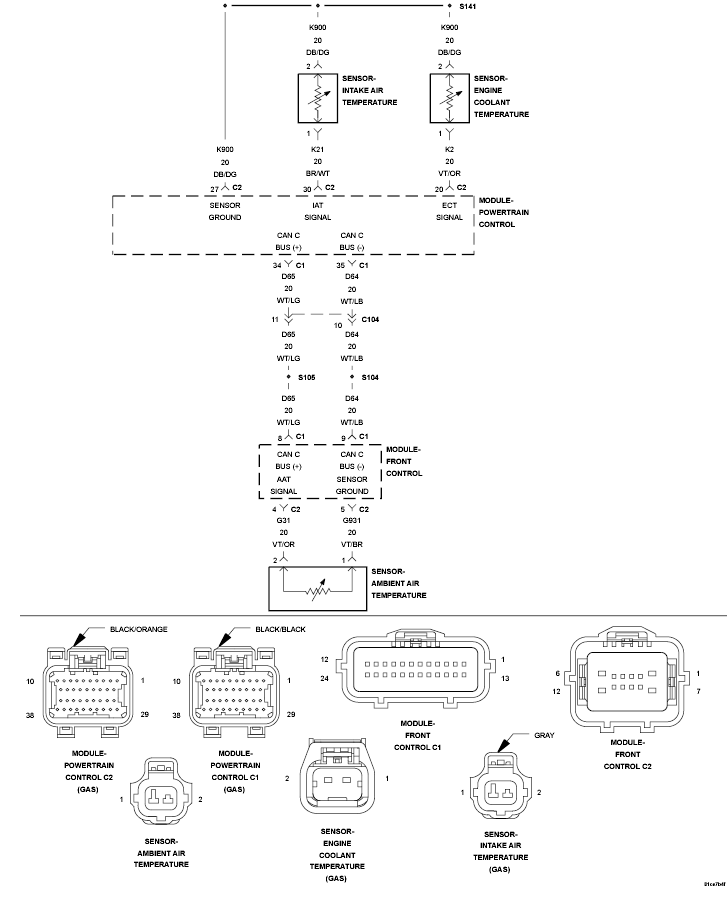

Home >> Jeep >> 2009 >> Commander Overland, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P000B To P0123 - NGC >> P0116-Engine Coolant Temperature Sensor Circuit Performance >> Circuit Schematic
