ANTENNA, Remote Start: Installation: Installation

Fig 1: Remote Start Antenna Module Assembly

Courtesy of CHRYSLER LLC

The Remote Start Antenna Module Assembly consists of an electrical connection to the WIN (1), a length of coax cable (2), mounting clips or tie wraps (3) and (4), and a control module/antenna (5).

1. Route coax cable (2) through openings on instrument panel.
   Fig 2: Mounting Clips

   Courtesy of CHRYSLER LLC
2. Position module (3) to IP mounting pins (2). Module snaps on.

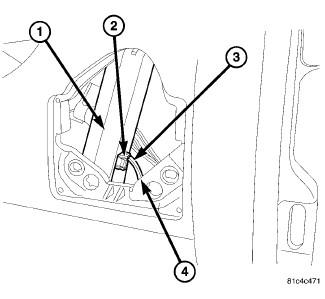

   Fig 3: Ignition Switch Assembly & Electrical Connector

   Courtesy of CHRYSLER LLC
3. Connect coax cable electrical connector (2) to WIN (1).
   Fig 4: Remote Start Antenna Module Assembly

   Courtesy of CHRYSLER LLC
4. Connect new coax cable tie wraps (3) and (4) to instrument panel.
5. Install radio. Refer to RADIO .

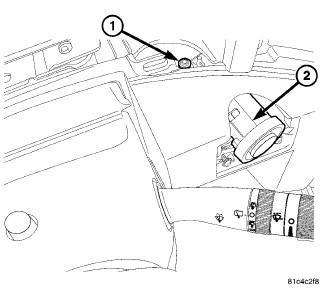

   Fig 5: Ignition Switch Top Mounting Torx Screw

   Courtesy of CHRYSLER LLC
6. Install one key cylinder housing torx screw (1). Finger tighten only.

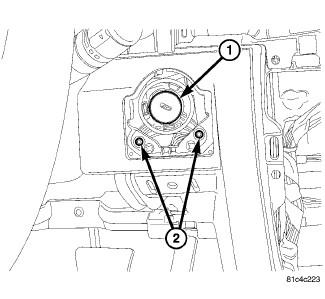

   Fig 6: Ignition Switch Front Mounting Torx Screws

   Courtesy of CHRYSLER LLC
7. Install two key cylinder housing torx screws (2). Now tighten all three mounting screws.
   Fig 7: Silencer Pad

   Courtesy of CHRYSLER LLC
8. Install silencer pad (1) (two screws).

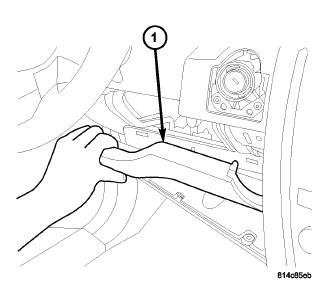

   Fig 8: Knee Blocker

   Courtesy of CHRYSLER LLC
9. Install knee blocker (1).
10. Install plastic bezel at ignition switch. Bezel snap on.
11. Install plastic bezel over IP cluster. Bezel snap on.
12. Install glove box.
13. Connect negative battery cable.
