Vehicle Theft Security System (Service Information): Siren: Installation: Bracket

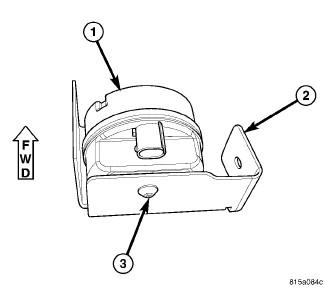

Fig 1: Remove/Install Siren Bracket

Courtesy of CHRYSLER LLC

1. Position the alarm siren module (1) with the threaded insert in the siren aligned with the mounting hole in the back of the bracket (2).
2. Install and tighten the screw (3) that secures the bracket to the siren. Tighten the screw to 14 N.m (10 ft. lbs.).
3. Reinstall the siren and bracket as a unit into the hollow on the back of the right end of the front frame crossmember outboard of the right frame rail. See Installation  .
