Module, Engine Control: Installation: Installation

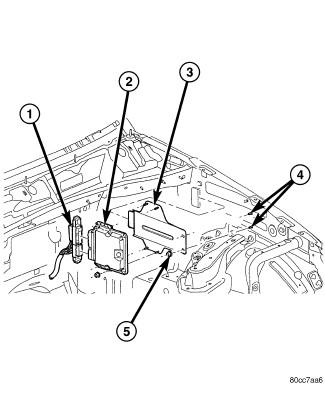

Fig 1: Engine Control Module (ECM)

Courtesy of CHRYSLER LLC

1 - ECM ELECTRICAL CONNECTORS

2 - ENGINE CONTROL MODULE (ECM)

3 - ECM MOUNTING BRACKET

4 - ECM MOUNTING BRACKET MOUNTING STUDS

5 - MOUNTING BRACKET RETAINING NUTS

1. Install Engine Control Module (ECM) on bracket (3).
2. Position ECM and bracket assembly in vehicle.
3. Install ECM bracket to inner fender retaining nuts (5).
4. Connect ECM electrical connectors (1).
5. Connect negative battery cable.
