SHAFT, Intermediate: Installation: Installation

CAUTION: Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage. Refer to Restraints/CLOCKSPRING - Standard Procedure .
Fig 1: Intermediate Shaft Out/In
GC0118947Courtesy of CHRYSLER LLC
1 - INTERMEDIATE SHAFT
2 - MASTER CYLINDER
  1. Install the shaft (1) in from the top by the master cylinder (2).
  2. Slide the shaft forward past the lines and then upwards.

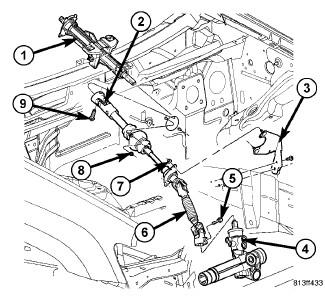

    Fig 2: Steering Column And Intermediate Shaft
    GC0118946Courtesy of CHRYSLER LLC
    1 - STEERING COLUMN
    2 - UPPER COUPLER
    3 - BRACKET
    4 - STEERING GEAR
    5 - LOWER COUPLER BOLT
    6 - INTERMEDIATE SHAFT
    7 - NUT
    8 - NUT
    9 - UPPER COUPLER BOLT
  3. Install a new  pinch bolt at the upper coupling (2) to the column (1).
    Fig 3: Column Access Cover
    GC0118192Courtesy of CHRYSLER LLC
  4. Install the column access cover (2).
    Fig 4: Left Hush Panel
    GC0118191Courtesy of CHRYSLER LLC
  5. Install the hush panel (2).

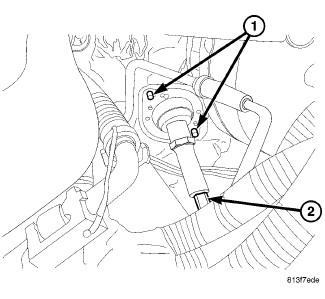

    Fig 5: Intermediate Shaft Mounting Nuts
    GC0118219Courtesy of CHRYSLER LLC
    1 - MOUNTING NUTS
    2 - INTERMEDIATE SHAFT
  6. Install the intermediate shaft (2) mounting nuts (1) to the bulkhead (The lower nut can be accessed from the inner fender well and the upper can be accessed from the top by the master cylinder).

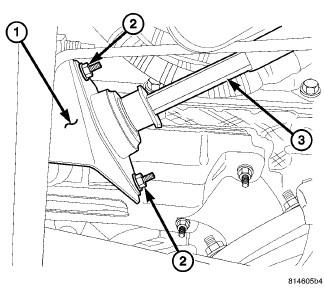

    Fig 6: Intermediate Shaft Bearing Bracket
    GC0118945Courtesy of CHRYSLER LLC
    1 - BRACKET
    2 - NUT
    3 - INTERMEDIATE SHAFT
  7. Install the intermediate shaft bearing nuts (2) to the bracket (1).
  8. Install the intermediate shaft bearing bracket (1) to the frame.

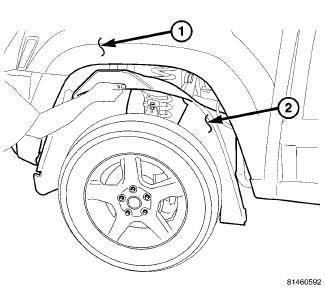

    Fig 7: Inner Fender Well
    GC0105158Courtesy of CHRYSLER LLC
    1 - FENDER
    2 - INNER FENDER WELL
  9. Install the left inner fender well (2).
  10. Lower the vehicle.

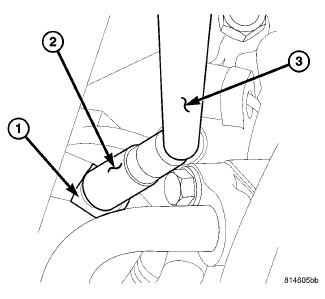

    Fig 8: Steering Coupling Pinch Bolt
    GC0118944Courtesy of CHRYSLER LLC
    1 - LOWER COUPLING
    2 - SOCKET
    3 - EXTENSION
  11. Install the lower coupling (1) pinch bolt using a long extension (3) with a swivel socket (2).
