Hood Ajar Switch Bracket

WARNING: This page is about a different car, the 2008 Jeep Commander. However, it is still accessible from the selected car via links, so may be relevant.

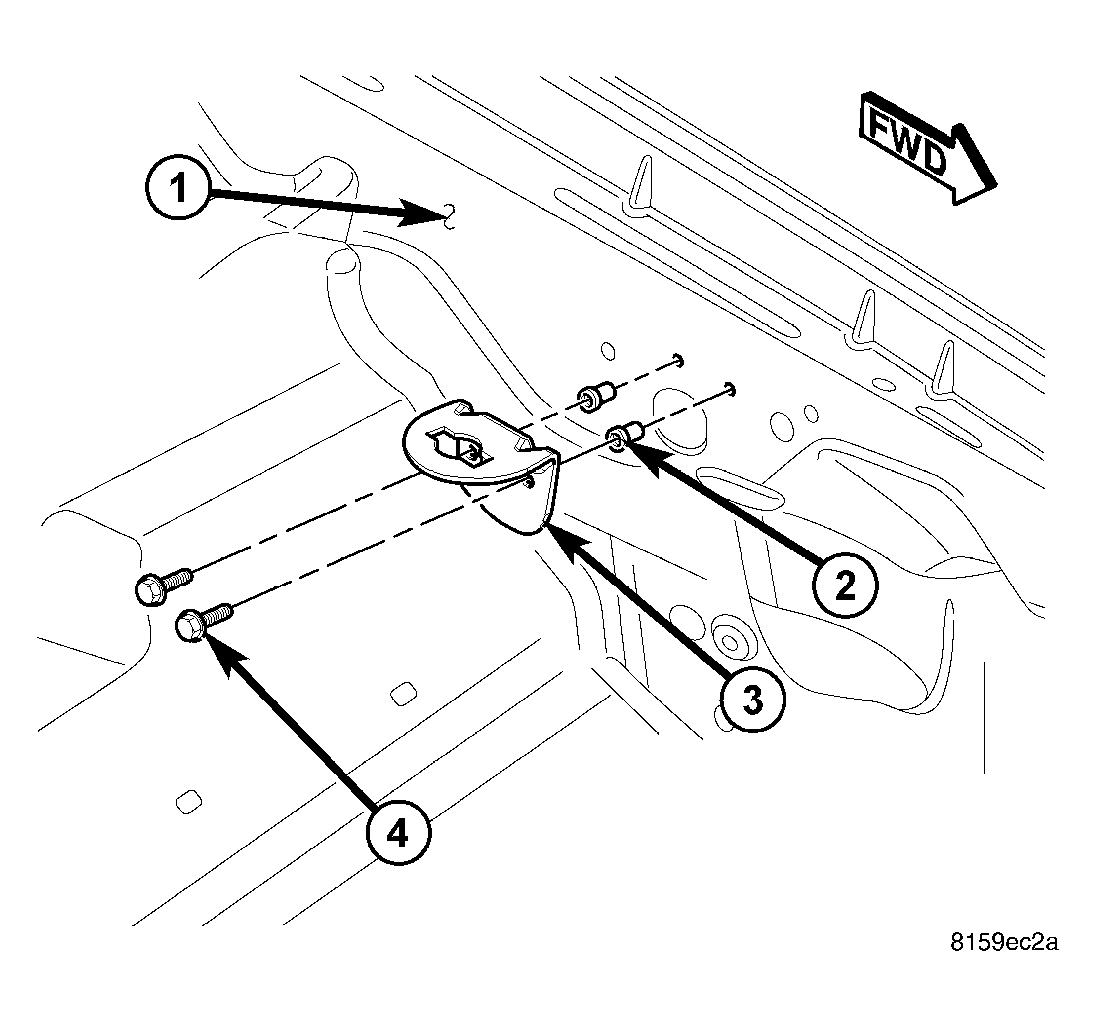

Fig 1: Remove/Install Hood Ajar Switch Bracket
GC0045724Courtesy of CHRYSLER LLC
  1. Check to be certain that the two rivet nuts (2) that secure the hood ajar switch bracket screws to the left fender inner shield (1) are properly installed and in good condition.
  2. Position the hood ajar switch bracket (3) onto the left fender inner shield.
  3. Install and tighten the two screws (4) that secure the hood ajar switch bracket to the left fender inner shield. Tighten the screws to 4 N.m (35 in. lbs.).
  4. Install a new hood ajar switch into the mounting bracket. See INSTALLATION .
