P0532-A/C Pressure Sensor Circuit Low: Notes

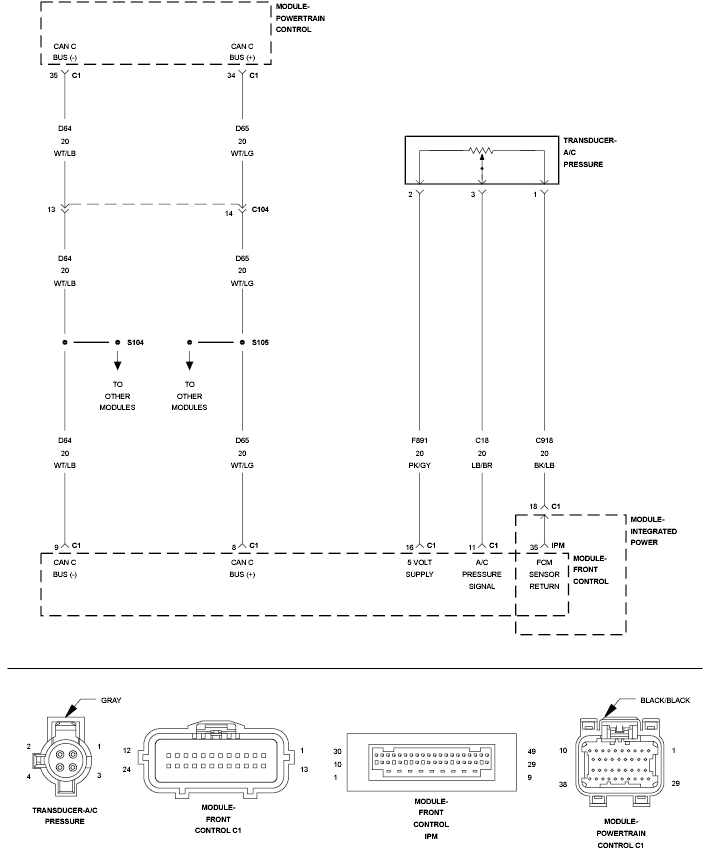

Fig 1: A/C Pressure Sensor Circuit

GC0120400

Courtesy of CHRYSLER LLC
