Diagnostic Test

CHECK FOR AN ACTIVE DTC
NOTE: Before proceeding with this diagnostic procedure, verify the Left and Right Multifunction Switch and Clockspring harness connectors are properly seated and verify proper pin terminal tension. A loose connection at any of these connectors may cause this DTC to set.
1. Turn the ignition on.
2. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
(A108) FUSED B (+) CIRCUIT OPEN

Fig 1: Checking Fused B (+) Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Right Steering Wheel Switch harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (A108) Fused B (+) circuit.
  Is the voltage above 10.0 volts?

  Yes
  - Go to step 3
  No
  - Using the Wiring Information as a guide, repair the (A108) Fused B (+) circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
(Z907) GROUND CIRCUIT OPEN

Fig 2: Checking Ground Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (Z907) Ground circuit at the Right Steering Wheel Switch harness connector.
  Is the resistance below 10K Ohms?

  Yes
  - Go to step 4
  No
  - Using the Wiring Information as a guide, repair the (Z907) Ground circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
RIGHT STEERING WHEEL SWITCH

Fig 3: Checking LIN BUS Circuit At Right Steering Wheel Switch Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Measure the voltage of the (D500) LIN BUS circuit at the Right Steering Wheel Switch harness connector.
  Is the voltage above 5.0 volts?

  Yes
  - Replace the Right Steering Wheel Switch in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 5
(D500) LIN BUS CIRCUIT OPEN BETWEEN RIGHT STEERING WHEEL SWITCH AND CLOCKSPRING

Fig 4: Checking LIN BUS Circuit Open Between Right Steering Wheel Switch & Clockspring
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Clockspring C8 harness connector.
3. Measure the resistance of the (D500) LIN BUS circuit between the Clockspring C8 and Right Steering Wheel Switch harness connectors.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 6
  No
  - Repair the (D500) LIN BUS circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
CLOCKSPRING

Fig 5: Checking Clockspring C2 Harness Connector
Courtesy of CHRYSLER LLC
1. Disconnect the Clockspring C2 harness connector.
2. Turn the ignition on.
3. Measure the voltage of the (D500) LIN BUS circuit at the Clockspring C2 harness connector.
  Is the voltage above 5.0 volts?

  Yes
  - Replace the Clockspring in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 7
(D500) LIN BUS CIRCUIT OPEN BETWEEN CLOCKSPRING AND CLUSTER

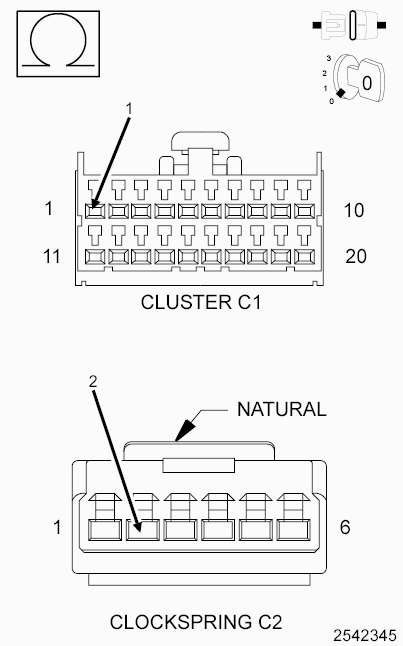

Fig 6: Checking LIN BUS Circuit Open Between Clockspring & Cluster
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Cluster C1 harness connector.
3. Measure the resistance of the (D500) LIN BUS circuit between the Clockspring C2 and Cluster C1 harness connectors.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Cluster in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Repair the (D500) LIN BUS circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
