5.7L Engine

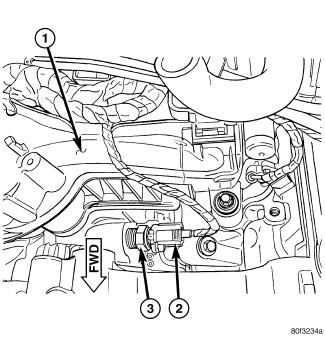

Fig 1: Engine Coolant Temperature REMOVE / INSTALL 5.7L

Courtesy of CHRYSLER LLC

1 - FRONT OF INTAKE MANIFOLD

2 - ELECTRICAL CONNECTOR

3 - ECT SENSOR

Apply thread sealant to sensor threads.
Install sensor into engine.
Tighten sensor to 11 N.m (8 ft. lbs.) torque.
Connect electrical connector to sensor.
Carefully bolt air conditioning compressor onto the front of engine.
Install accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
Replace any lost engine coolant. See Cooling - Standard Procedure .
