FAN, Cooling: Installation: 3.7L/4.7L

Position fan assembly on shroud (4).

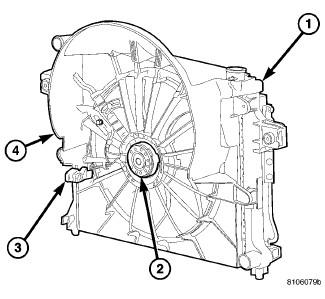

Fig 1: Radiator Cooling Fan

GC0118266

Courtesy of CHRYSLER LLC

1 - RADIATOR

2 - ELECTRIC COOLING FAN MOTOR

3 - COOLING FAN ELECTRICAL CONNECTOR

4 - FAN SHROUD

Install fan to fan shroud (4) mounting nuts. Tighten to 6 N.m (50 in. lbs.).
Position fan and shroud assembly in vehicle.
Install shroud (4) mounting bolts. Tighten to 6 N.m (50 in. lbs.)
Connect electric fan electrical connector (3).
Start engine and check fan operation.
