Diagnostic Test

CHECK IF THE DTC IS CURRENT
1. Start the engine in park.
2. With the scan tool, read the AutoStick® voltage.
  Does the scan tool AutoStick voltage read above 4.75 volts?

  Yes
  - Go to step 2
  No
  - Go to step 7
CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A OPEN

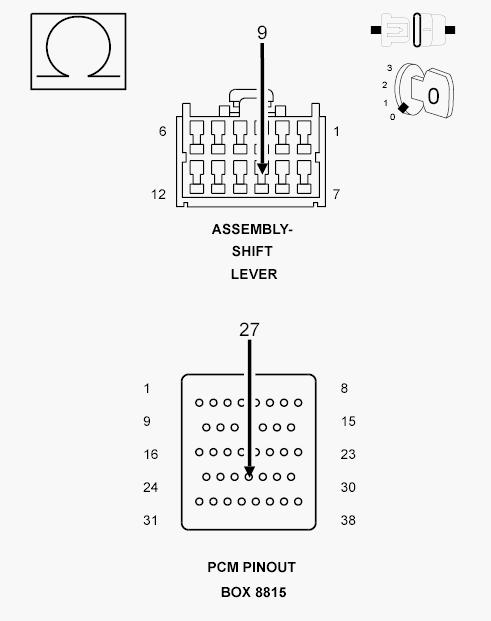

Fig 1: Checking Autostick Up/Down Sense Circuit For A Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C3 harness connector and connect the PCM Pinout Box 8815.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
3. Disconnect the Shift Lever Assembly harness connector.
4. Measure the resistance of the (T5) AutoStick Up/Down Sense circuit between the Shift Lever Assembly harness connector and the appropriate terminal of the PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 3
  No
  - Repair the (T5) AutoStick Up/Down Sense circuit for an open.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN

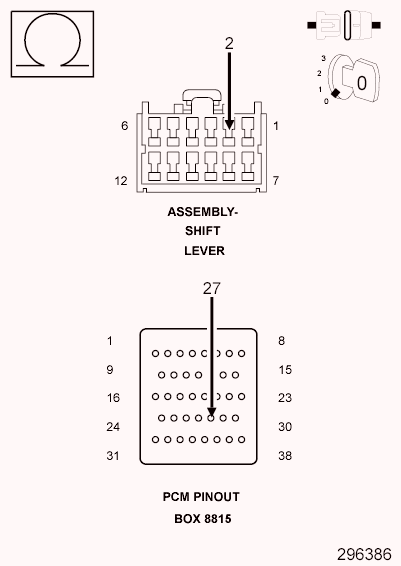

Fig 2: Checking Sensor Ground Circuit For An Open
Courtesy of CHRYSLER LLC
1. Disconnect the PCM C2 harness connector and connect the PCM Pinout Box 8815.
2. Measure the resistance of the (K900) Sensor Ground circuit between the Shift Lever Assembly harness connector and the appropriate terminal of the PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 4
  No
  - Repair the (K900) Sensor Ground circuit for an open.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A SHORT TO VOLTAGE

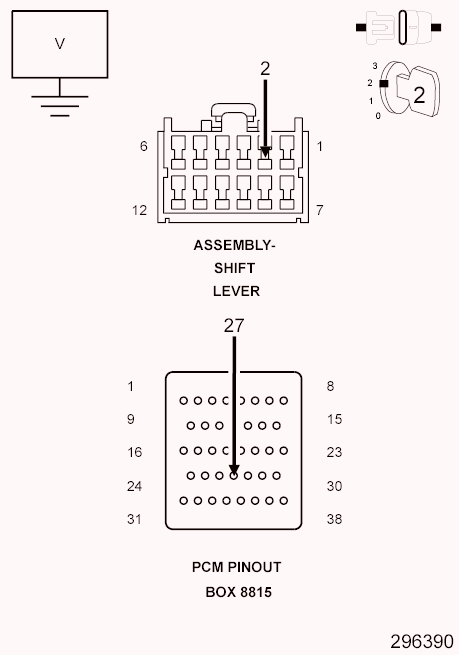

Fig 3: Checking Autostick Up/Down Sense Circuit For A Short To Voltage
Courtesy of CHRYSLER LLC
1. Ignition on, engine not running.
2. Measure the voltage of the (T5) AutoStick Up/Down Sense circuit.
  Is the voltage above 0.5 of a volt?

  Yes
  - Repair the (T5) AutoStick Up/Down Sense circuit for a short to voltage.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT

Fig 4: Checking Autoshift Up/Down Sense Circuit For A Short To Another Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Measure the resistance between the (T5) AutoStick Up/Down Sense circuit and all other circuits in the Shift Lever Assembly harness connector.
  Is the resistance below 5.0 Ohms between the (T5) AutoStick Up/Down Sense circuit and any other circuit(s) in the Shift Lever Assembly harness connector.

  Yes
  - Repair the (T5) AutoStick Up/Down Sense circuit for a short to another circuit(s).
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go To step 6
CHECK THE AUTOSTICK SWITCH

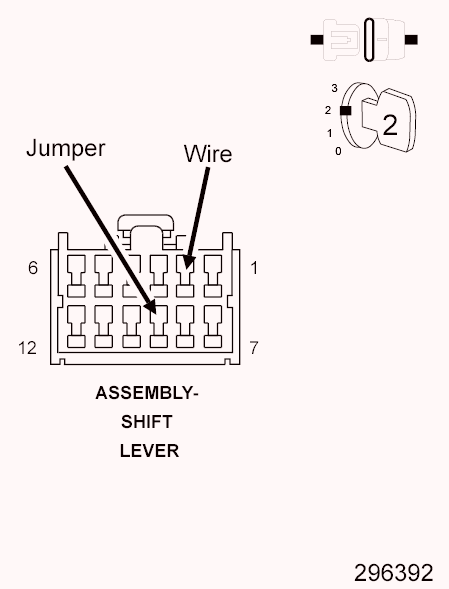

Fig 5: Checking Autostick Switch
Courtesy of CHRYSLER LLC
1. Reconnect the PCM C2 and C3 harness connectors.
2. Connect a jumper wire between (T5) AutoStick Up/Down Sense circuit and (K900) Sensor Ground circuit in the Shift Lever Assembly harness connector.
3. Ignition on, engine not running.
4. With the scan tool, read the AutoStick voltage.
  Did the scan tool AutoStick voltage drop below 0.5 of a volt?

  Yes
  - Replace the Shift Lever Assembly in accordance with the Service Information.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE AUTOSTICK VOLTAGE WHILE SHIFTING
1. Start the engine in park.
2. With the brakes firmly applied, shift into AutoStick.
3. With the scan tool, monitor the AutoStick voltage while shifting both low and high.
  Did the scan tool AutoStick voltage rise above 4.75 volts at any given time?

  Yes
  - Replace the Shift Lever Assembly in accordance with the Service Information.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 8
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
4. Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Test Complete.
