Stabilizer Bar To Frame Bushing

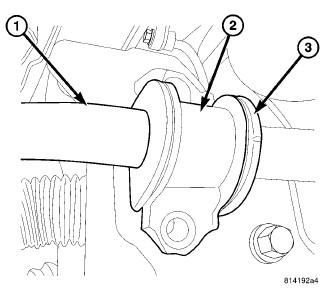

Fig 1: Stabilizer Bar Bracket To Frame
GC0117752Courtesy of CHRYSLER LLC
1 - STABILIZER BAR
2 - RETAINER BRACKET
3 - BUSHING
  1. Install the stabilizer bar bushing (3) to the bar (1).
  2. Install the stabilizer bar bushing retainer bracket (2) bolts and tighten the two mounting bolts.
  3. Install the front splash shield.
  4. Lower the vehicle.
