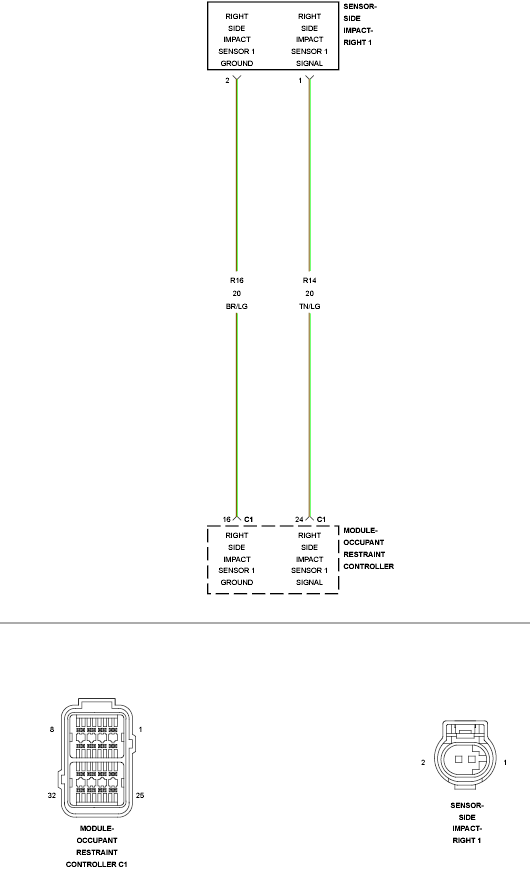

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> U0175-Lost Communication W/Right Side Satellite Acceleration Sensor 1 >> Circuit Schematic
