Diagnostic Test

  1. VERIFY THAT DTC B1B71-UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR INTERNAL IS ACTIVE
    NOTE: Make sure the battery is fully charged.
    1. Turn the ignition on.
    2. With the scan tool, read ORC DTCs.

      Does the scan tool display active: B1B71-UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR INTERNAL?

      Yes

      • Go to step  2

      No

  2. CHECK THE (R80), (R82) FRONT RIGHT IMPACT SENSOR SIGNAL AND GROUND CIRCUITS FOR A SHORT TO BATTERY

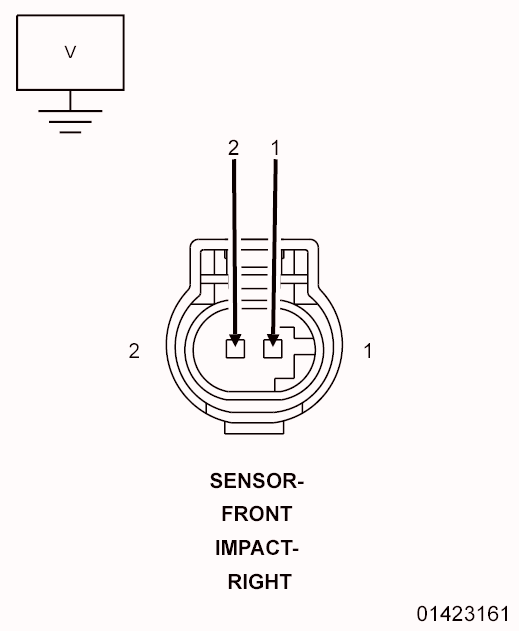

    Fig 1: Checking Front Right Impact Sensor Signal & Ground Circuits For A Short To Battery
    GC0119646Courtesy of CHRYSLER LLC
    WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    1. Disconnect the Front Right Impact Sensor connector.
    2. Disconnect the ORC connector.
    3. Connect the SRS Load Tool Adaptor 8443-24 to the Occupant Restraint Controller C2 connector.
      WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    4. Measure the voltage of the (R80) Front Right Impact Sensor Signal circuit and (R82) Sensor Ground circuit at the Front Right Impact Sensor connector and ground.

      Is there any voltage present?

      Yes

      No

      • Go to step  3
  3. CHECK THE (R80) FRONT RIGHT IMPACT SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

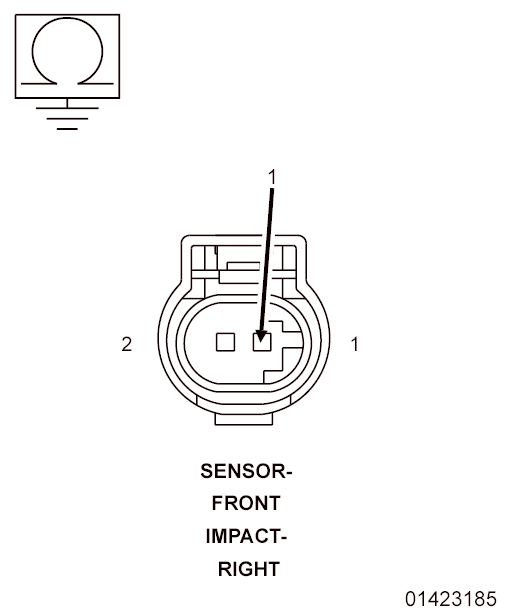

    Fig 2: Checking Front Right Impact Sensor Signal Circuit For A Short To Ground
    GC0119647Courtesy of CHRYSLER LLC
    WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    1. Measure the resistance of the (R80) Front Right Impact Sensor Signal circuit between the Front Right Impact Sensor connector and ground.

      Is the resistance below 100K Ohms?

      Yes

      No

      • Go to step  4
  4. CHECK THE (R80), (R82) FRONT RIGHT IMPACT SENSOR CIRCUITS FOR A SHORT TOGETHER

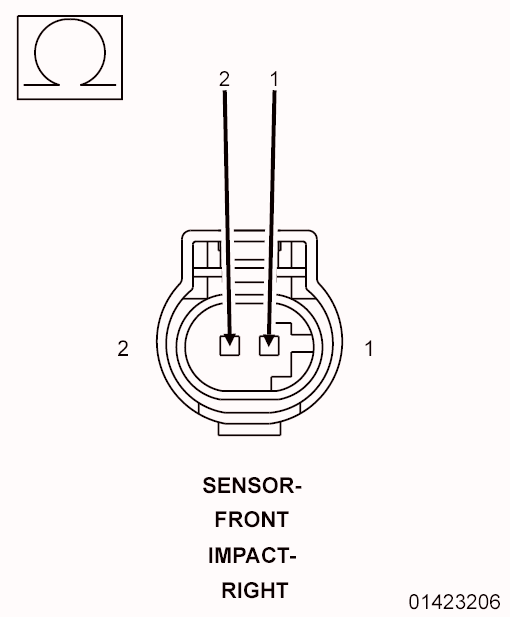

    Fig 3: Checking Front Right Impact Sensor Circuits For A Short Together
    GC0119648Courtesy of CHRYSLER LLC
    1. Measure the resistance between the (R80) Front Right Impact Sensor Signal and (R82) Sensor Ground circuits at the Front Right Impact Sensor connector.

      Is the resistance below 100K Ohms?

      Yes

      No

      • Go to step  5
  5. CHECK THE (R82) FRONT RIGHT IMPACT SENSOR GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

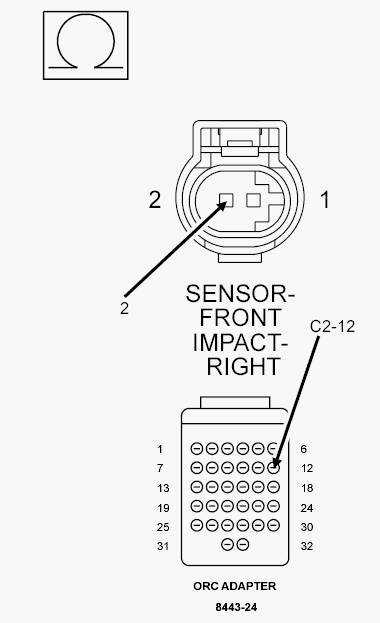

    Fig 4: Checking Front Right Impact Sensor Ground Circuit For An Open Or High Resistance
    GC0119649Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (R82) Front Right Impact Sensor Ground circuit between the Front Right Impact Sensor connector and the SRS Load Tool Adaptor 8443-24.

      Is the resistance below 1 Ohm?

      Yes

      • Go to step  6

      No

  6. CHECK THE (R80) FRONT RIGHT IMPACT SENSOR CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

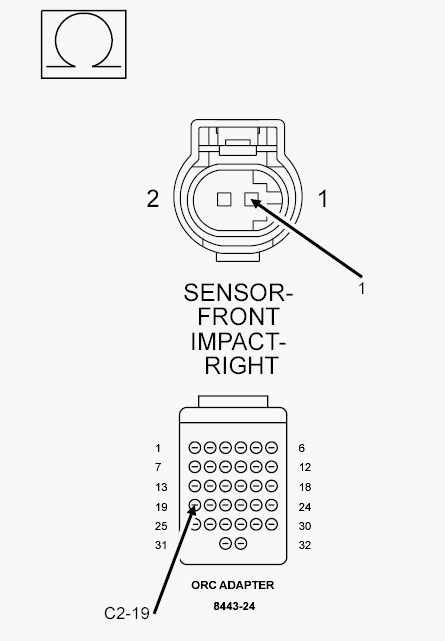

    Fig 5: Checking Front Right Impact Sensor Circuit For An Open Or High Resistance
    GC0119650Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (R80) Front Right Impact Sensor Signal circuit between the Front Right Impact Sensor connector and the SRS Load Tool Adaptor 8443-24.

      Is the resistance below 1 Ohm?

      Yes

      • Go to step  7

      No

  7. CHECK OPERATION OF THE FRONT RIGHT IMPACT SENSOR
    1. Replace the Front Right Impact Sensor.
    2. Reconnect the vehicle body harness to the impact sensor.
    3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
      WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    4. Connect the scan tool to the Data Link Connector - use the most current software available.
    5. Use the scan tool and erase the stored codes in all airbag system modules.
    6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
    7. Wait one minute, and read active codes and if there are none present read the stored codes.

      Did the active Front Right Impact Sensor DTC return?

      Yes

        WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
      • WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.
      • Replace the Occupant Restraint Controller in accordance with Service Instructions.
      • Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .

      No
