Diagnostic Test

DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443A, and DVOM are required to perform the following test.
1. Select Active or Stored DTC.
  Is the DTC active or stored?

  ORC - ACTIVE DTC
  - Go to step 2
  ORC - STORED DTC
  - Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK FOR OPEN SQUIB CIRCUITS IN DRIVER AIRBAG

Fig 1: Checking For Shorted Squib Circuits In Driver Airbag
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Driver Airbag Squib connectors.
  WARNING: Do not place an intact non-deployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-1 to the Driver Airbag Squib connectors.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B06-DRIVER AIRBAG SQUIB 2 CIRCUIT OPEN?

  Yes
  - Go to step 3
  No
  - Replace the Driver Airbag in accordance with the Service Information.
  - Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK CLOCKSPRING SQUIB CIRCUITS FOR AN OPEN

Fig 2: Checking Clockspring Squib Circuits For A Short To Ground
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-1 from the Driver Airbag Squib connectors.
2. Disconnect the Clockspring C4 harness connector.
  NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Kit 8443A and the SRS Load Tool Jumper 8443-19 to the Clockspring C4 harness connector.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: B1B06-DRIVER AIRBAG SQUIB 2 CIRCUIT OPEN?

  Yes
  - Go to step 4
  No
  - Replace the Clockspring in accordance with the Service Information.
  - Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R63) DRIVER SQUIB 2 LINE 1 CIRCUIT AND (R61) DRIVER SQUIB 2 LINE 2 CIRCUIT FOR AN OPEN

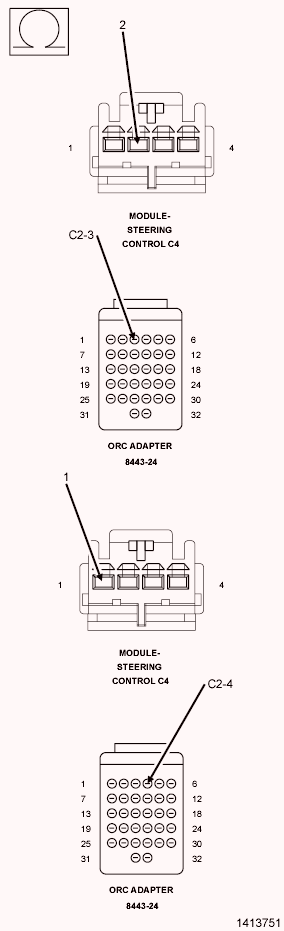

Fig 3: Checking Driver Squib 2 Line 1 Circuit & Driver Squib 2 Line 2 Circuit For An Open
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-19 from the Clockspring C4 harness connector.
2. Disconnect the ORC connectors.
  NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adaptor 8443-24 to the ORC C2 connector.
4. Measure the resistance of the (R63) Driver Squib 2 Line 1 circuit between the Clockspring C4 connector and the SRS Load Tool Adaptor 8443-24.
5. Measure the resistance of the (R61) Driver Squib 2 Line 2 circuit between the Clockspring C4 connector and the SRS Load Tool Adaptor 8443-24.
  Is the resistance below 1.0 Ohm for both circuits?

  Yes
  - Replace the ORC in accordance with the Service Information.
  - Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Repair the (R63) Driver Squib 2 Line 1 circuit or (R61) Driver Squib 2 Line 2 circuit for an open.
  - Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
