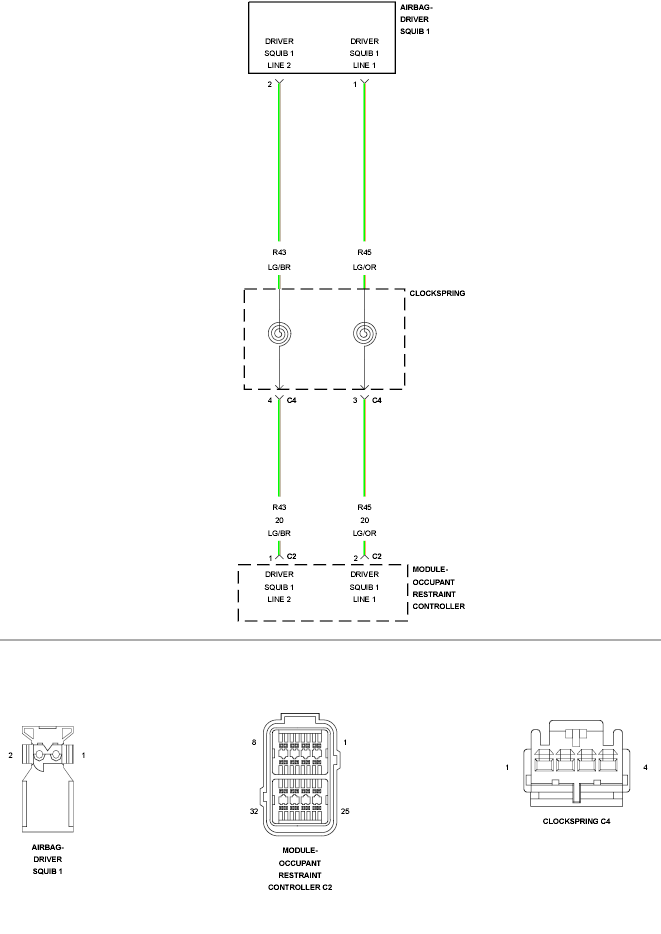

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B02-Driver Airbag Squib 1 Circuit Open >> Circuit Schematic
