Flip Up Glass Latch (Liftgate) Connector End View (C2)

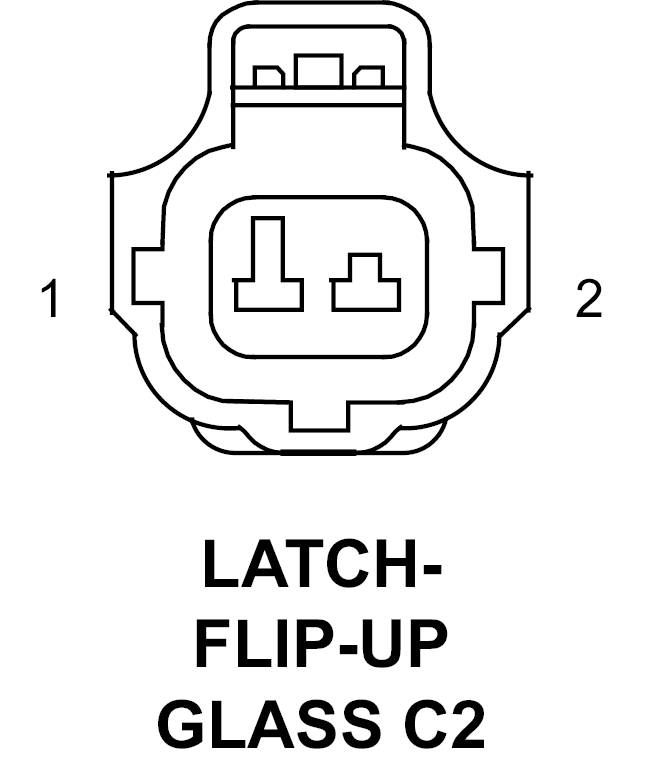

LATCH-FLIP-UP GLASS C2 - 2-WAY(LIFTGATE)

GXK780202Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z800 18BK GROUND
2 G80 20VT/BR FLIP-UP GLASS AJAR SWITCH SENSE
