MODULE, Engine Control: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to Electrical/Battery System/BATTERY - Removal
  2. Remove the battery tray. Refer to Electrical/Battery System/TRAY, Battery - Removal

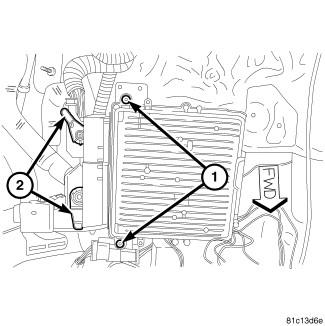

    Fig 1: ECM Hold Down Bolts
    GC0118372Courtesy of CHRYSLER LLC
  3. Disconnect Engine Control Module (ECM) electrical connectors (2).
  4. Remove the two ECM hold down bolts (1).

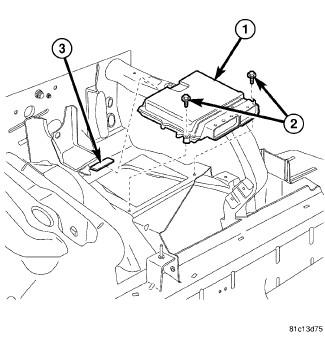

    Fig 2: Identifying ECM, Bracket & Hold Down Bolts
    GC0118373Courtesy of CHRYSLER LLC
  5. Pull the ECM (1) from the bracket (3).
  6. Remove the ECM from the vehicle.
