CROSSMEMBER, Transmission: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

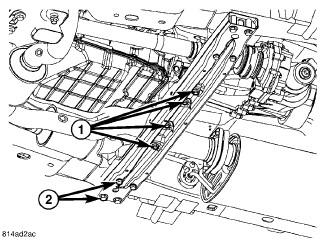

- Install the crossmember and install the eight crossmember bolts (2).
- Tighten the crossmember bolts to 54 N.m (40 ft. lbs.).
- Remove the lifting device.
- Install the four transmission mount bolts (1) and tighten to 54 N.m (40 ft. lbs.).
- Install the skid plate. See Installation
