Intrusion Sensor Receiver

WARNING: This page is about a different car, the 2008 Jeep Commander. However, it is still accessible from the selected car via links, so may be relevant.

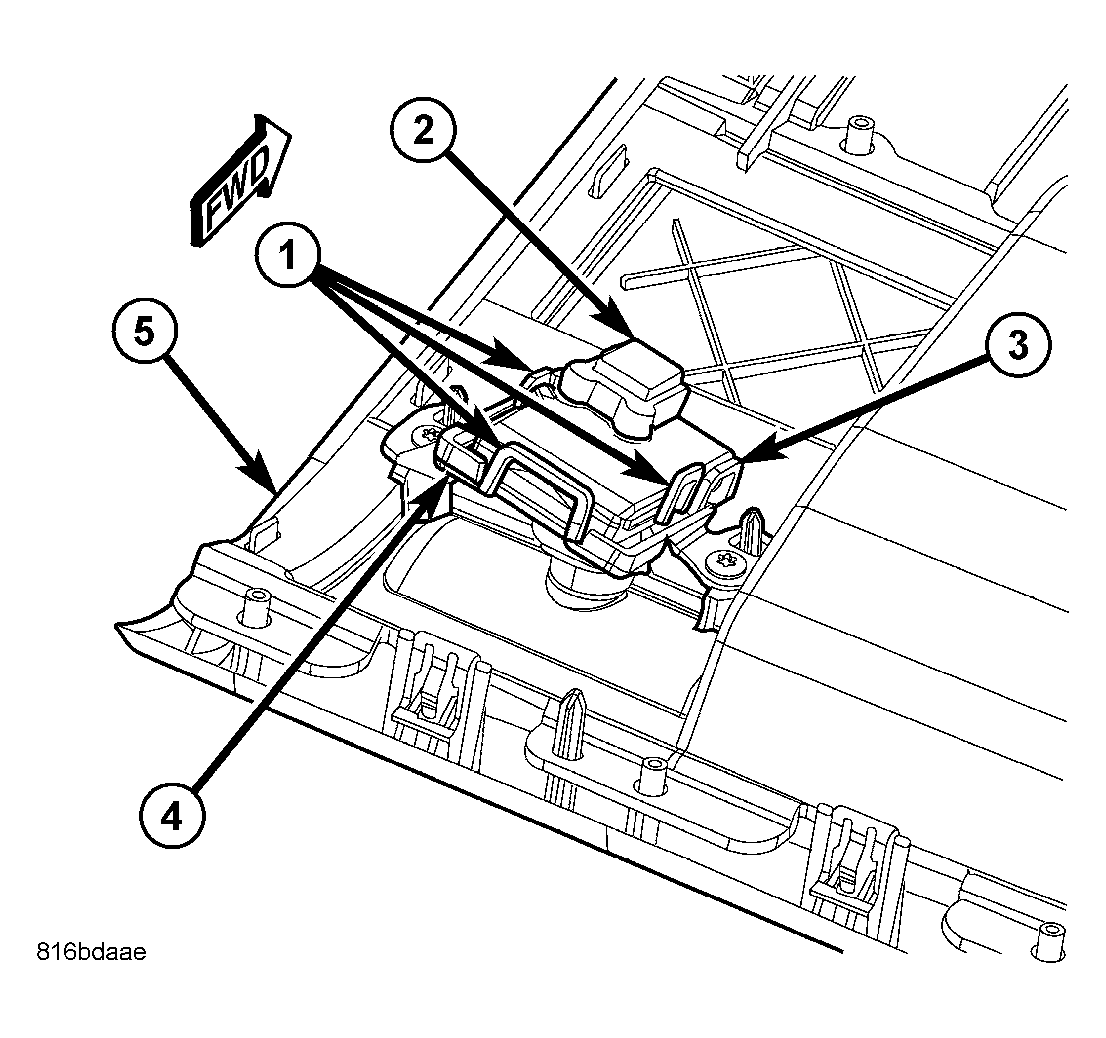

Fig 1: Remove/Install Receiver
GC0045726Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the headliner. Refer to REMOVAL .
  3. Locate the intrusion sensor receiver (3) in the mounting bracket (4) on the left rear corner of the overhead console housing (5).
  4. Disconnect the take out of the overhead wire harness from the connector receptacle (2) on the forward end of the receiver housing.
  5. Release the three latch features (1) of the mounting bracket and disengage the receiver from the bracket.
