Intrusion Module: Removal

WARNING: This page is about a different car, the 2008 Jeep Commander. However, it is still accessible from the selected car via links, so may be relevant.

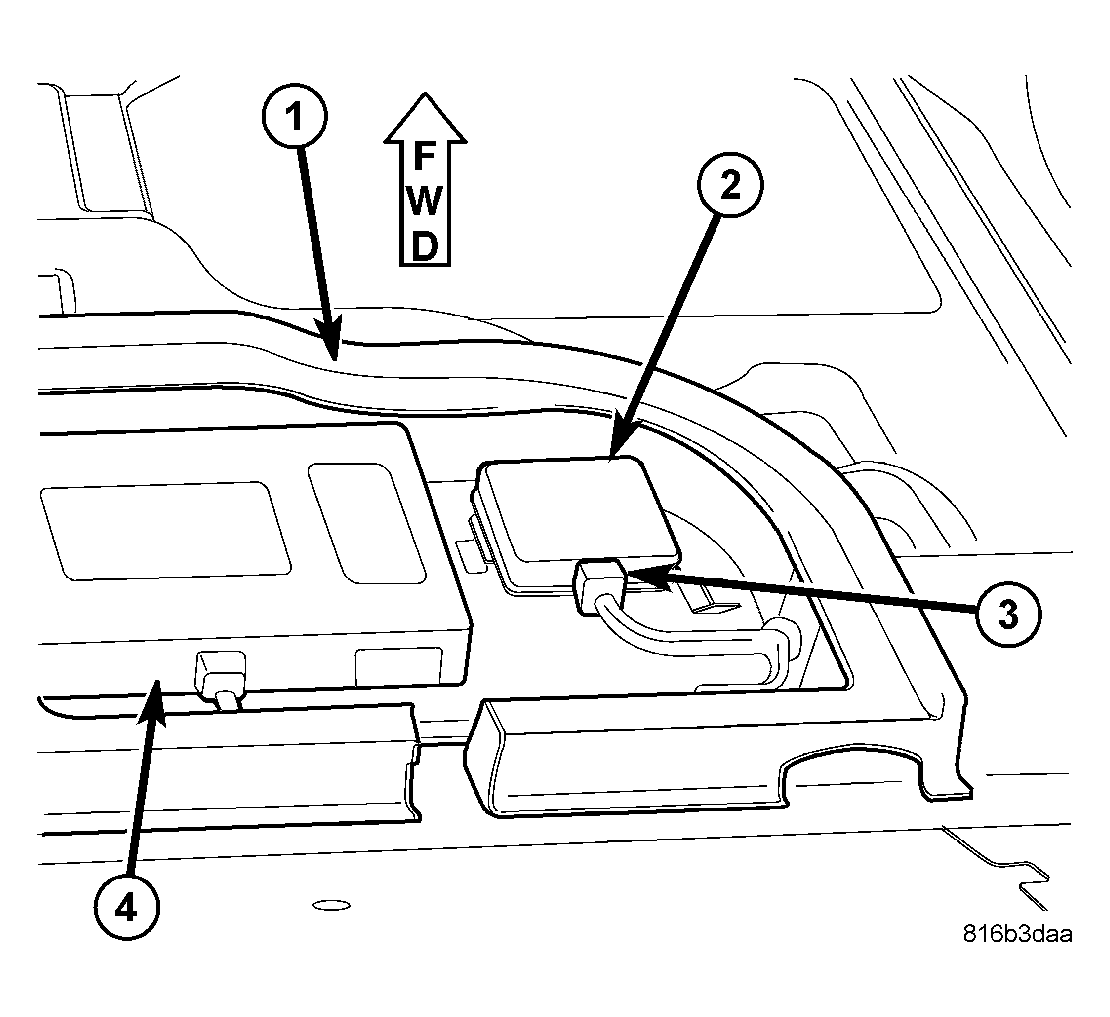

Fig 1: Intrusion Module
GC0045725Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Fold and tumble the right outboard second row seat assembly forward.
  3. Remove the carpeted cover panel from over the cavity on the right outboard end of the intermediate step assembly (1).
  4. Disconnect the body wire harness connector (3) from the intrusion module (2) connector receptacle.
  5. Using a trim stick or another suitable wide flat-bladed tool, gently pry the two latch features on the floor of the intermediate step cavity away from the mounting tabs of the module far enough to disengage the module.
  6. Disengage the two mounting tabs on the sides of the module from the slots in the intermediate step cavity.
  7. Remove the module from the cavity in the intermediate step assembly.
