No Response From PDM (Passenger Door Module): Notes
WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

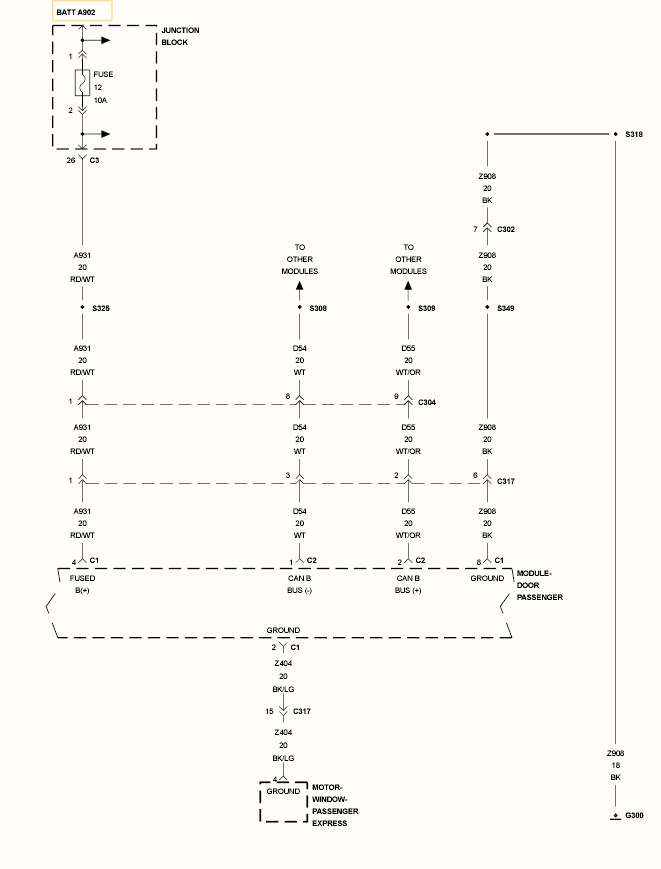

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A931) FUSED B(+) CIRCUIT OPEN OR SHORTED |
| GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| PASSENGER DOOR MODULE |
