Diagnostic Test

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU view.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to step 2
  No
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(A33) FUSED B(+) CIRCUIT OPEN OR SHORTED

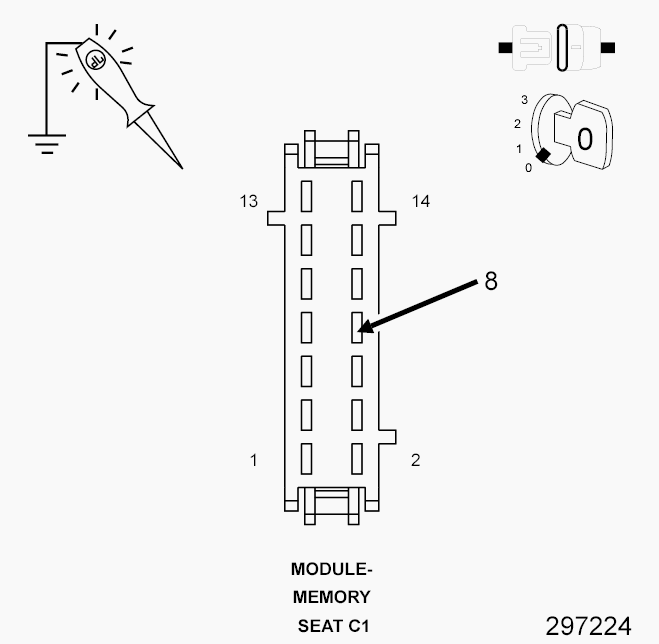

Fig 1: Checking Fused B(+) Circuit For Open Or Shorted
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Memory Seat Module C1 harness connector.
3. Using a 12-volt test light connected to ground, check the (A33) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 3
  No
  - Repair the (A33) Fused B(+) circuit for an open or short.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
(Z911) GROUND CIRCUIT OPEN

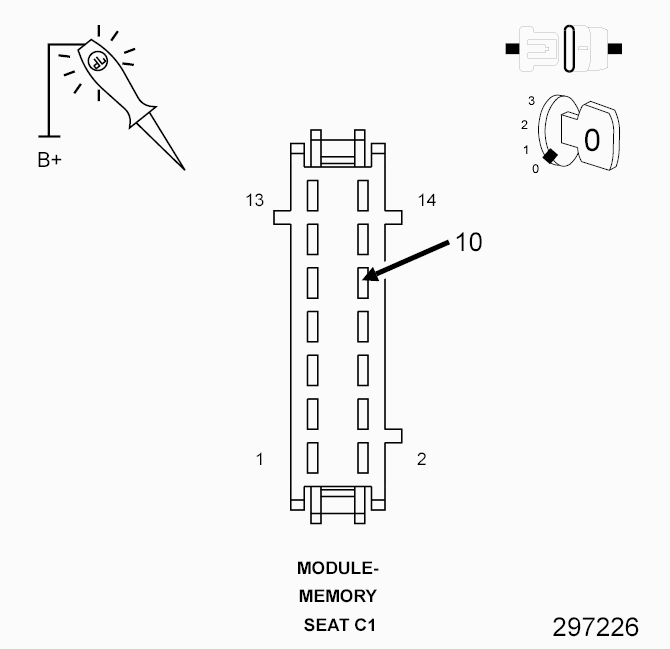

Fig 2: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z911) ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 4
  No
  - Repair the (Z911) ground circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
(D55) AND (D54) CAN B BUS CIRCUITS OPEN

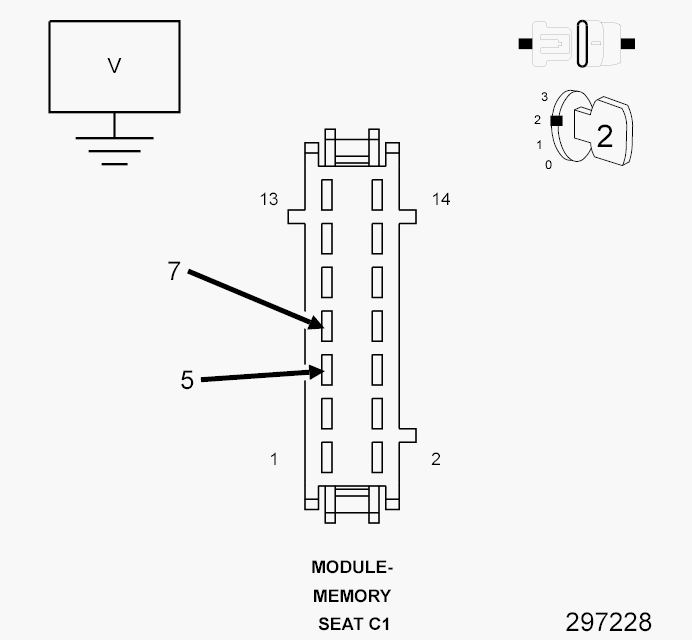

Fig 3: Checking Can B Bus Circuits For Open
Courtesy of CHRYSLER LLC

NOTE: One open circuit will not cause this condition.
1. Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.
2. Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.
  Is there any voltage present on either circuit?

  Yes
  - Replace the Memory Seat Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
