No Response From DDM (Driver Door Module): Notes

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

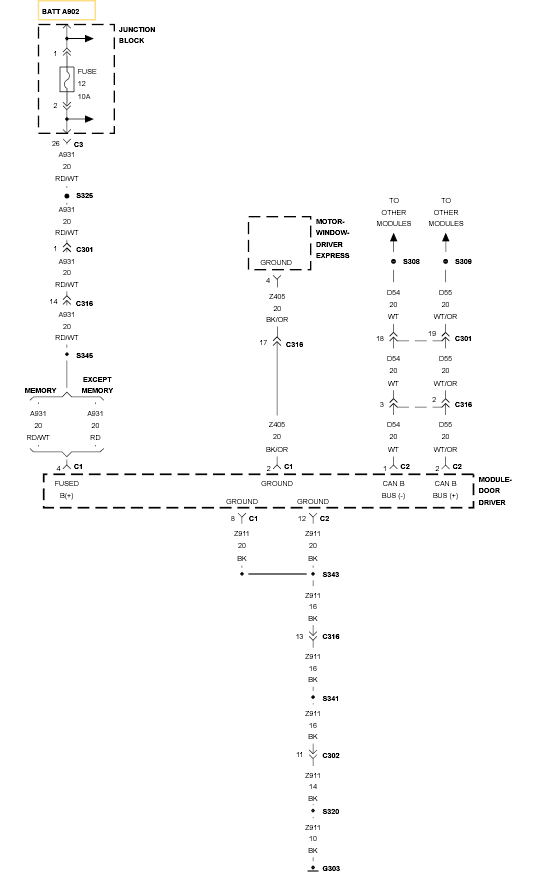

Fig 1: Driver Door Module CAN B BUS, Fused B+ & Ground Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A931) FUSED B(+) CIRCUIT OPEN OR SHORTED
GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
DRIVER DOOR MODULE
