No Response From AHLM (Automatic Headlamp Leveling Module): Notes
WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

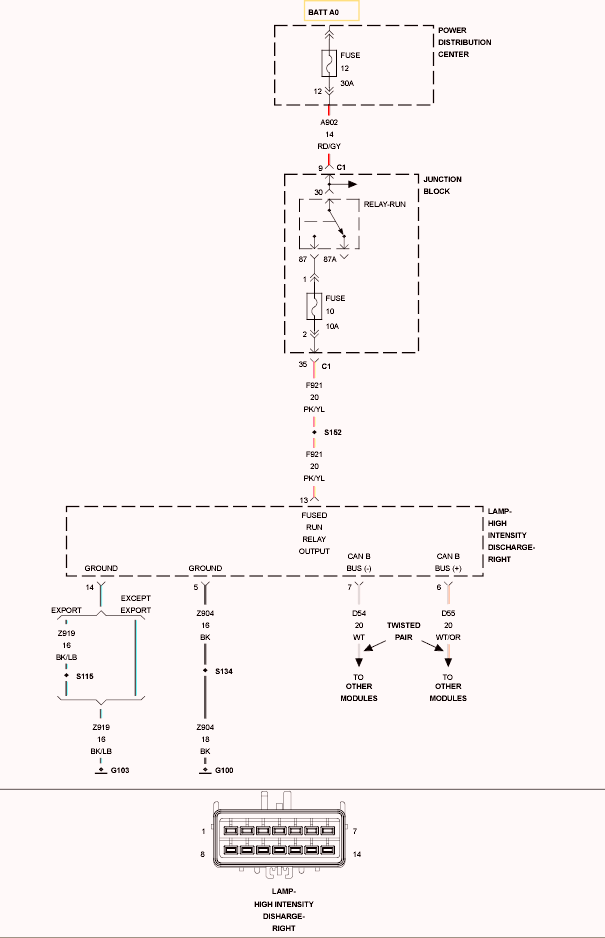

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (F921) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED |
| (Z904) (Z919) GROUND CIRCUITS OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| AUTOMATIC HEADLAMP LEVELING MODULE |
