Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0197 To P0330 - NGC >> P0315-No Crank Sensor Learned >> Notes

P0315-No Crank Sensor Learned: Notes

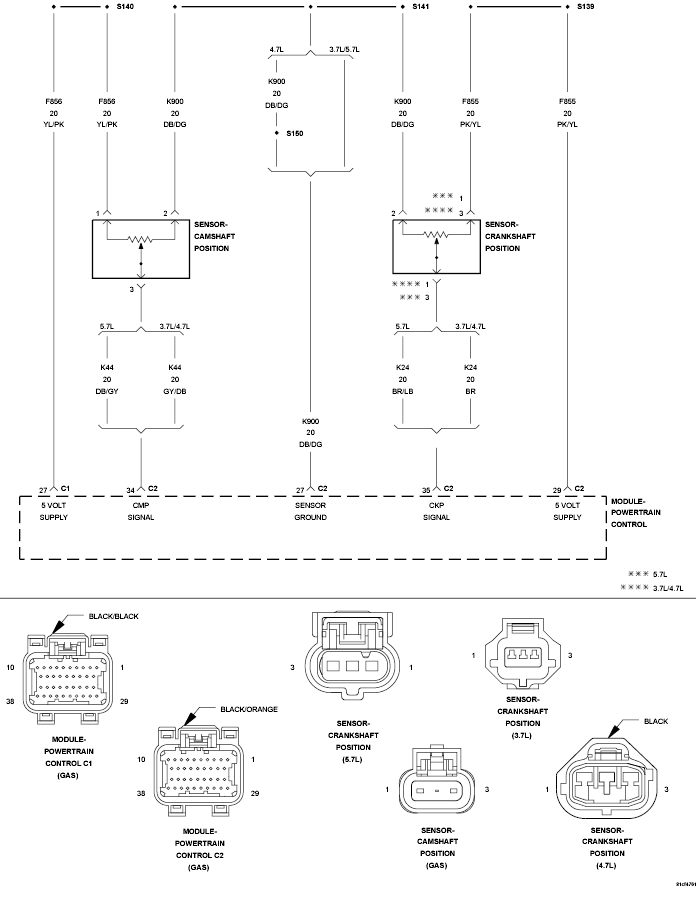

Fig 1: Crankshaft/Camshaft Sensor Circuit

GC0132679

Courtesy of CHRYSLER LLC
