P0205-Fuel Injector 5 Circuit: Notes

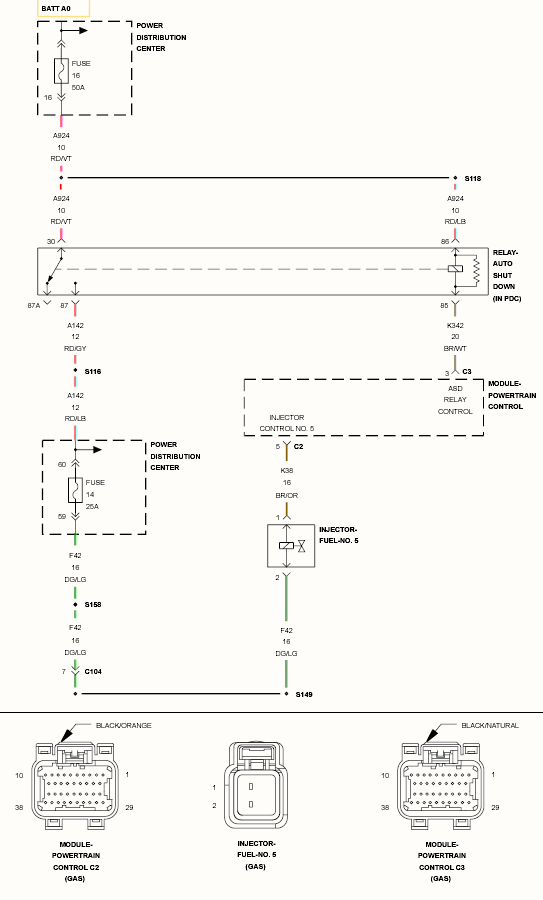

Fig 1: Fuel Injector Circuit

GC0132714

Courtesy of CHRYSLER LLC
