P0204-Fuel Injector 4 Circuit: Notes

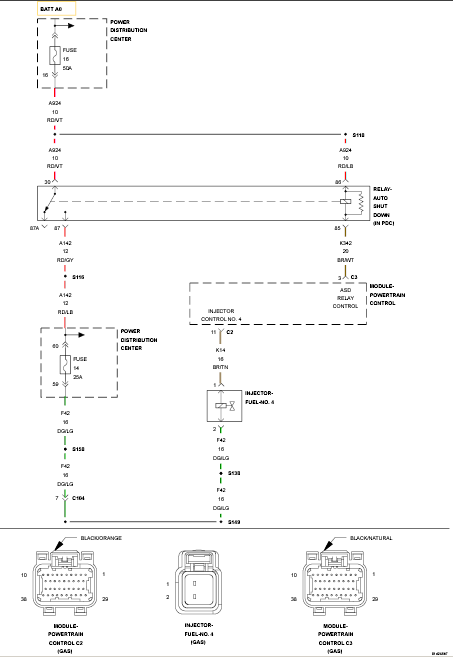

Fig 1: Fuel Injector Circuit

GC0132713

Courtesy of CHRYSLER LLC
