Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0197 To P0330 - NGC >> P0203-Fuel Injector 3 Circuit >> Notes

P0203-Fuel Injector 3 Circuit: Notes

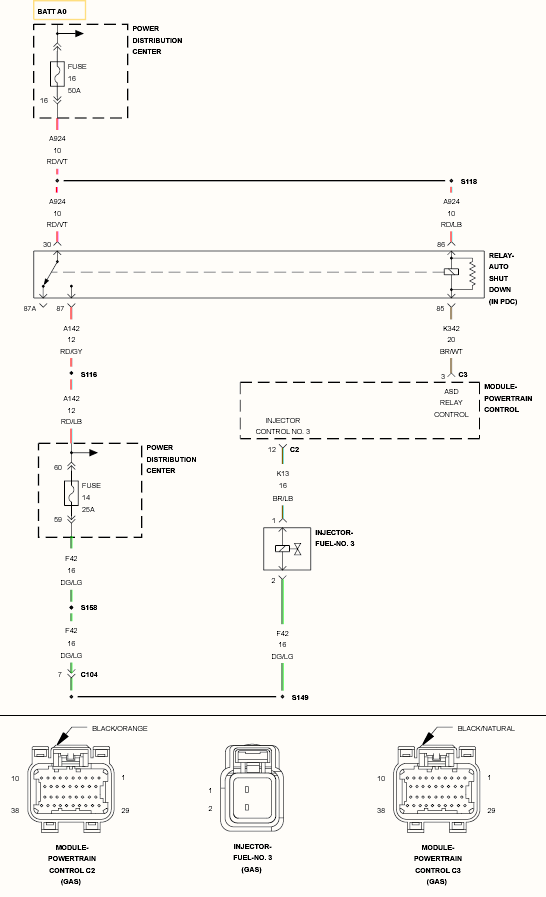

Fig 1: Fuel Injector Circuit

GC0132712

Courtesy of CHRYSLER LLC
