P0201-Fuel Injector 1 Circuit: Notes

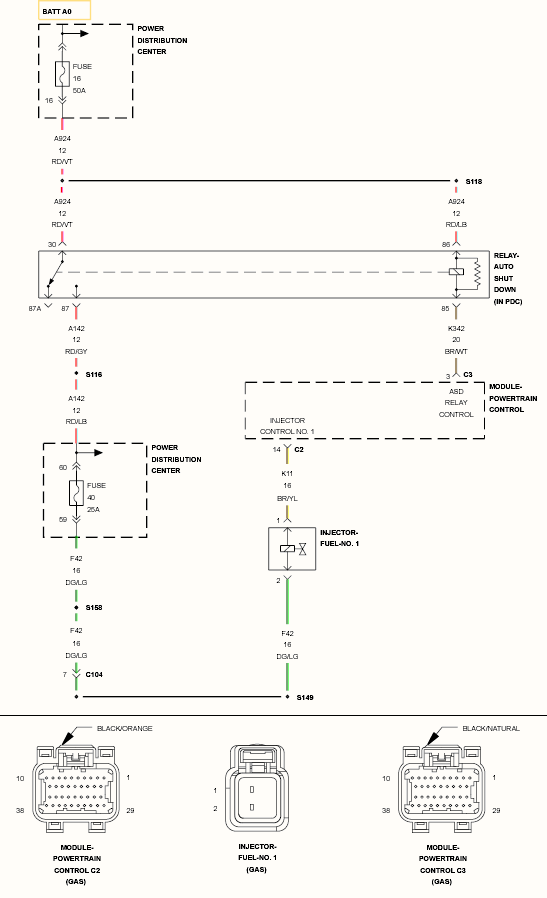

Fig 1: Fuel Injector Circuit

GC0132710

Courtesy of CHRYSLER LLC
