COVER(S), Engine Timing: Installation: Installation

Fig 1: Front Cover Slide Bushings

Courtesy of CHRYSLER LLC

1. Clean timing chain cover and block surface.
   NOTE: Always install a new gasket on timing cover.
2. Verify that the slide bushings (1) are installed in timing cover.
3. Install cover and new gasket. Tighten fasteners to 28 N.m (250 in. lbs.).
   NOTE: The large lifting stud is tightened to 55 N.m (40 ft. lbs.).

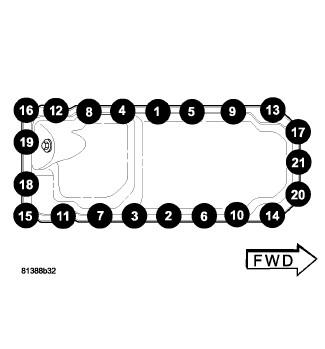

   Fig 2: Oil Pan Bolt Tightening Sequence

   Courtesy of CHRYSLER LLC
4. Install the oil pan and pick up tube. See Installation  .
5. Install the A/C compressor.
6. Install the generator.
7. Install power steering pump.
8. Install the dipstick support bolt.
9. Install the thermostat housing.
10. Install crankshaft damper. See Installation  .
11. Install accessory drive belt tensioner assembly and both idler pulleys.
12. Install radiator lower hose.
13. Install both heater hoses.
14. Install the cooling module.
15. Install the accessory drive belt.
16. Install the coolant bottle and washer bottle.
17. Install the upper radiator hose.
18. Install the air cleaner assembly.
19. Fill cooling system.
20. Refill engine oil.
21. Connect the battery negative cable.
