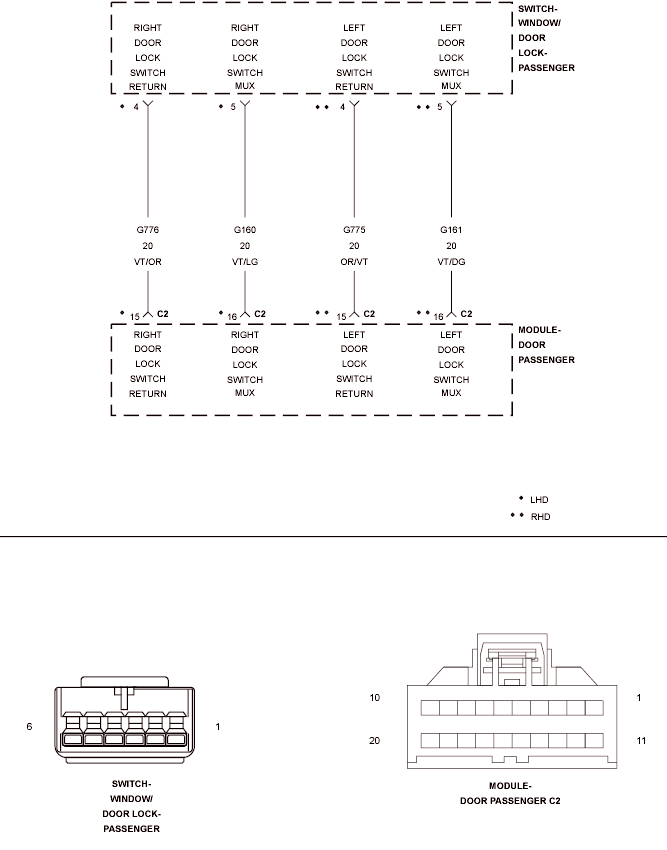

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Passenger Door Module (PDM) - Electrical Diagnostics >> DTC Troubleshooting >> B1807 Passenger Door Lock/Unlock Switch Circuit High >> Circuit Schematic
