Diagnostic Test
- TEST FOR INTERMITTENT CONDITION
- Turn the ignition on.
- With the scan tool, record and erase the DTCs.
- Operate the Passenger Window up and down several times.
- Wait 30 seconds.
- With the scan tool, read the active DTCs.
Does the scan tool display B1858-DRIVER WINDOW POSITION SENSOR POWER SUPPLY LOW?
Yes
- Go to step 2
No
- The conditions that caused this code to set are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
- WINDOW MOTOR OPEN OR SHORTED
- Turn the ignition off.
- Disconnect the Driver Window Motor connector.
- Turn the ignition on.

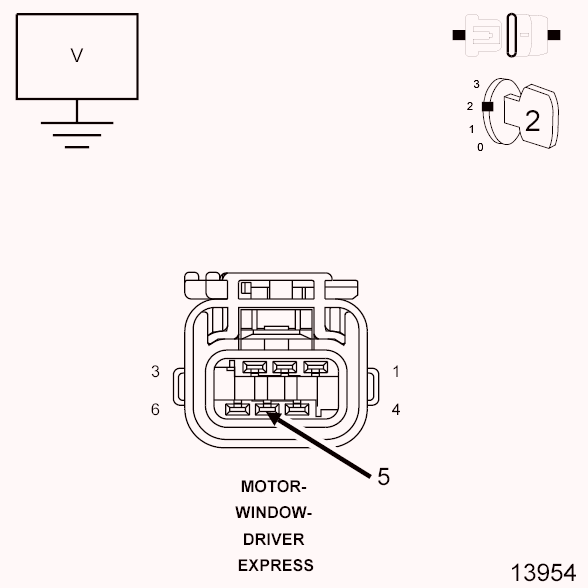

- Measure the voltage between ground and the (Q305) Driver Window Hall Sensor Supply circuit.
Is the voltage above 10.5.volts?
Yes
- Replace the Window Motor in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
No
- Go to step 3
- (Q305) DRIVER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND
- Turn the ignition off.
- Disconnect the Driver Door Module C2 connector.

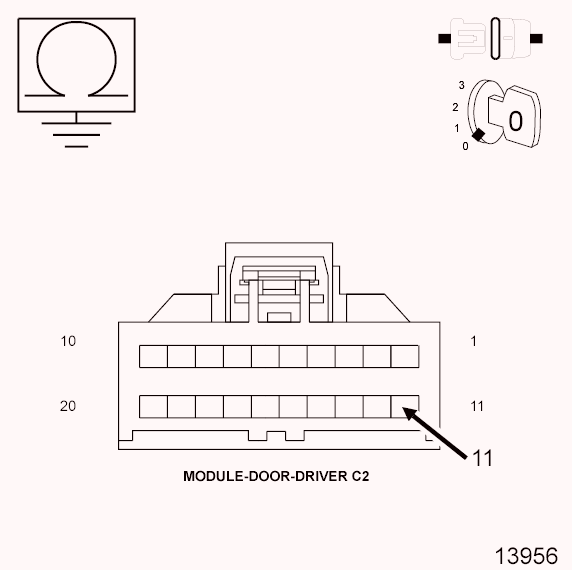

- Measure the resistance between Ground and the (Q305) Driver Window Hall Sensor Supply circuit.
Is the resistance below 1,000 ohms?
Yes
- Repair the (Q305) Driver Window Hall Sensor Supply circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
No
- Go to step 4
- (Q305) DRIVER WINDOW HALL SENSOR SUPPLY CIRCUIT OPEN

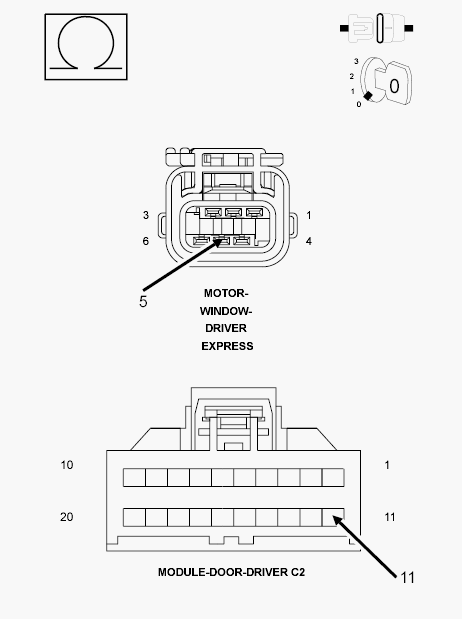

- Measure the resistance of the (Q305) Driver Window Hall Sensor Supply circuit between the Driver Window Motor connector and the Driver Door Module C2 connector.
Is the resistance below 5.0 ohms?
No
- Repair the (Q305) Driver Window Hall Sensor Supply circuit for an open.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
Yes
- Replace the Driver Door Module in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
- Measure the resistance of the (Q305) Driver Window Hall Sensor Supply circuit between the Driver Window Motor connector and the Driver Door Module C2 connector.
