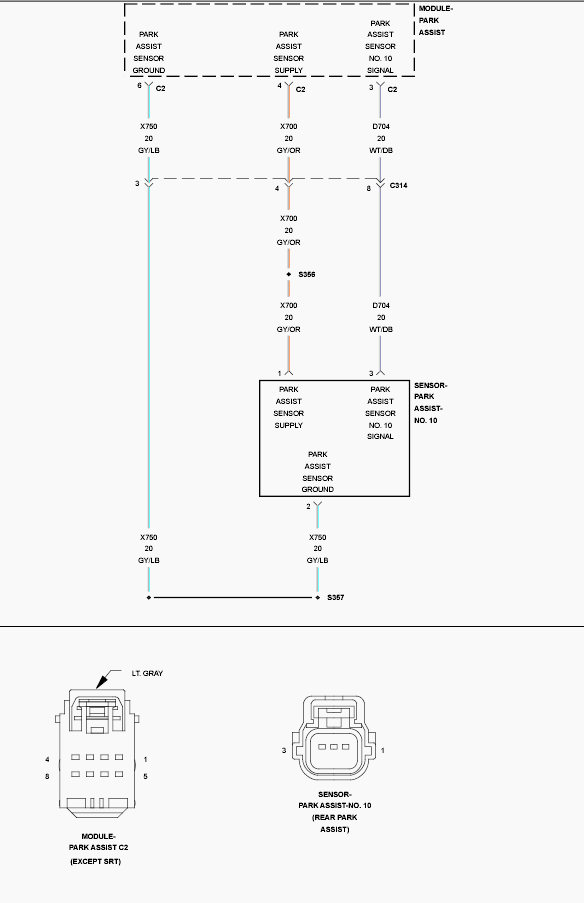

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Park Assist Module (PTS) - Electrical Diagnostics >> DTC Troubleshooting >> B1297-11-PTS Sensor 10-Circuit Short To Ground >> Circuit Schematic
