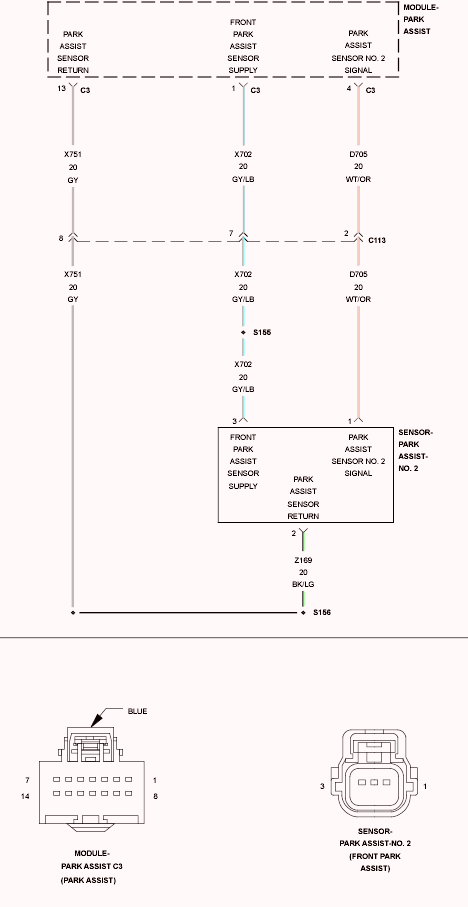

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Park Assist Module (PTS) - Electrical Diagnostics >> DTC Troubleshooting >> B128F-12-PTS Sensor 2-Circuit Short To Battery >> Circuit Schematic
