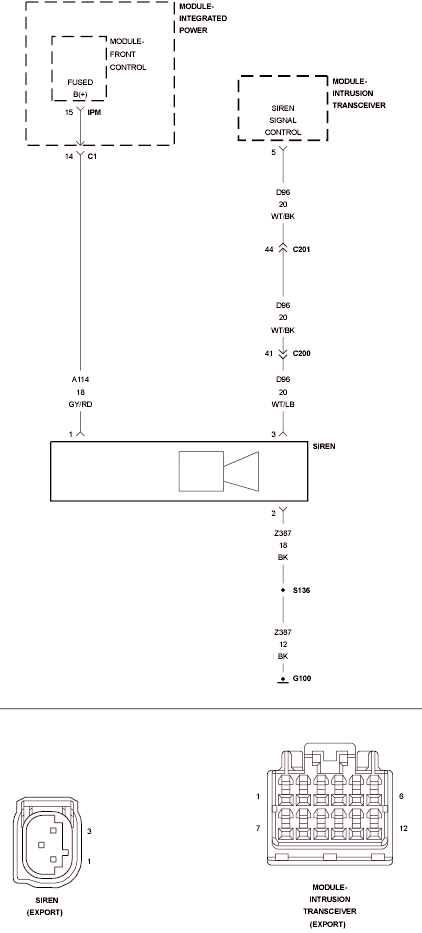

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Intrusion Transceiver Module (ITM) - Electrical Diagnostics >> DTC Troubleshooting >> U1416-Implausible Security Siren Signal Received >> Circuit Schematic
