Engine Block: FLEXPLATE: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

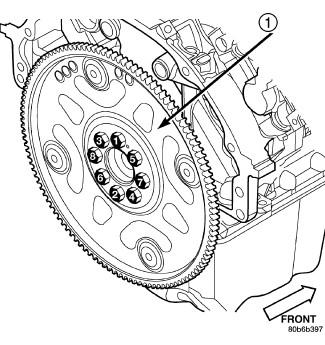

Fig 1: Flexplate Tightening Sequence
GC0082865Courtesy of CHRYSLER LLC
1 - FLEXPLATE
  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate retaining bolts to 60 N.m (45 ft. lbs.) in the sequence shown in Fig 1.
  3. Install the transmission. Refer to Transmission and Transfer Case/Automatic - 45RFE/545RFE - Installation .
