P0693-Cooling Fan 2 Relay Control Circuit Low: Notes

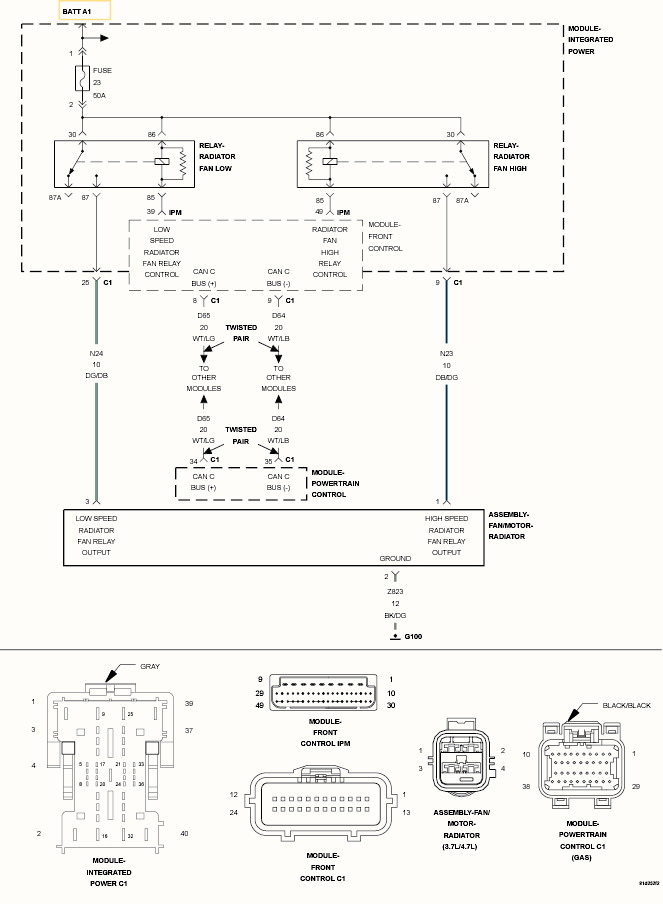

Fig 1: Cooling Fan Relay Control Circuit

GC0132720

Courtesy of CHRYSLER LLC
