Checking The Fuel Delivery System: Notes

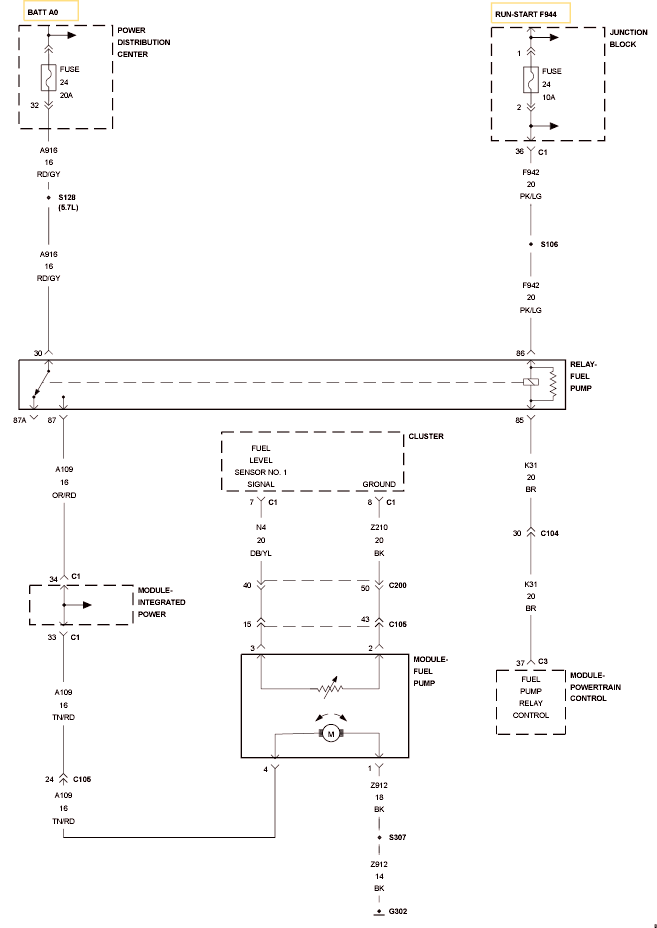

Fig 1: Fuel Delivery System Circuit Schematic
GC0120723Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP INLET STRAINER PLUGGED
(A109) FUEL PUMP RELAY OUTPUT CIRCUIT
FUEL PUMP RELAY
FUEL PUMP
