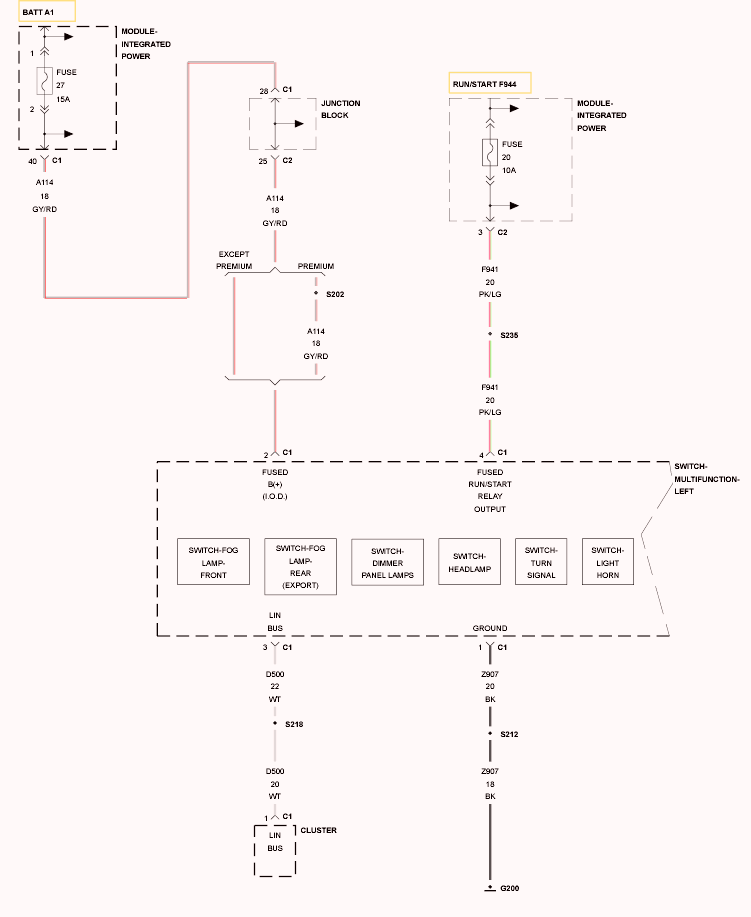

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> (Cabin Compartment Node (CCN) - Electrical Diagnostics) >> DTC Troubleshooting >> U1149-Lost Communication With Multi-Function Switch >> Circuit Schematic
