Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase DTCs.
2. Cycle the ignition from on to off.
3. Turn the ignition on.
4. With the scan tool, read DTCs.
  Does the scan tool display: B211B-IGNITION RUN/ACC/SPAD CONTROL CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
IGNITION RUN/ACC DELAY RELAY
1. Turn the ignition off.
2. Install a substitute relay in place of the original Ignition Run/ACC Delay Relay.
3. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 30 seconds.
4. With the scan tool, read the DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 3
  No
  - Replace the original Ignition Run/ACC Delay Relay.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
JUNCTION BLOCK
NOTE: Perform this test with the relay removed.
1. Turn the ignition off.
2. Disconnect the Junction Block C2 connector (on top of junction block).
3. From the Relay cavity 85, measure for voltage.
  Is voltage present?

  Yes
  - Replace the Junction Block in accordance with Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 4
(F103) IGNITION RUN/ACC RELAY CONTROL CIRCUIT SHORTED TO BATTERY

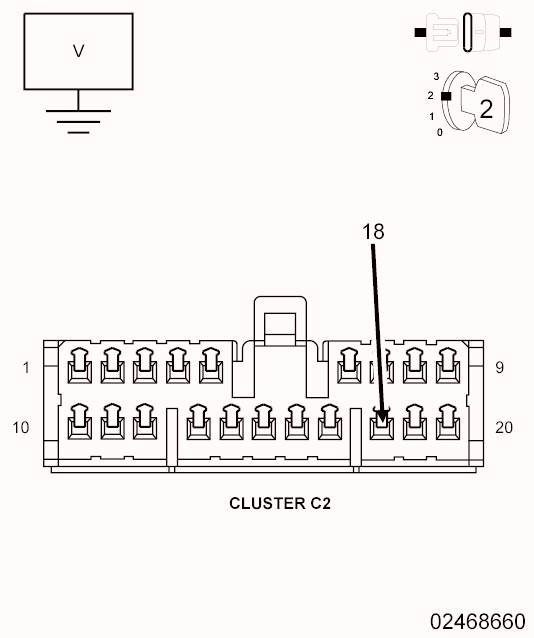

Fig 1: Checking Ignition Run/ACC Relay Control Circuit Shorted To Battery
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Disconnect the Cluster C2 harness connector.
3. Measure the voltage between ground and the (F103) Ignition RUN/ACC Relay Control circuit in the Cluster C2 connector.
  Is there any voltage present?

  Yes
  - Repair the (F103) Ignition RUN/ACC Relay Control circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the Cluster in accordance with Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
