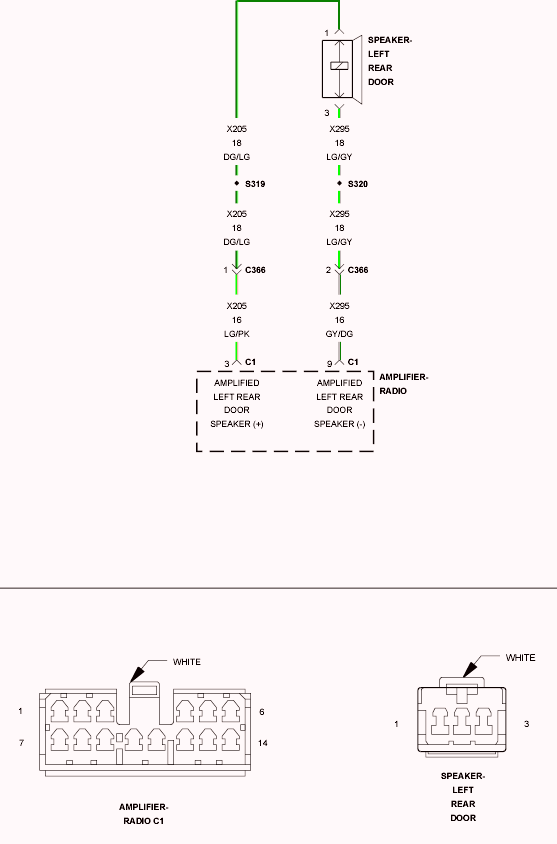

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio System (Amplifier) - Electrical Diagnostics >> DTC Troubleshooting >> B1477-Channel 5 Audio Speaker Output Circuit Open >> Circuit Schematic
