Module, Door: Removal: Removal

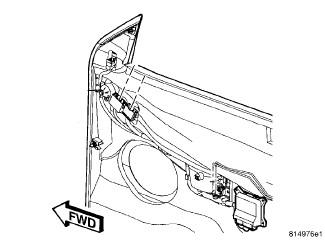

Fig 1: Identifying Memory Mirror Module
GC0118369Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the door trim panel. Refer to Body/Door - Front/PANEL, Door Trim - Removal .
    Fig 2: Electrical Connectors
    GC0104140Courtesy of CHRYSLER LLC
  3. First disconnect the black 10-way electrical connector (1), then the brown 20-way electrical connector (2). If applicable, next disconnect the black 12-way electrical connector (3) from the module.
  4. Remove fasteners and module from vehicle.
